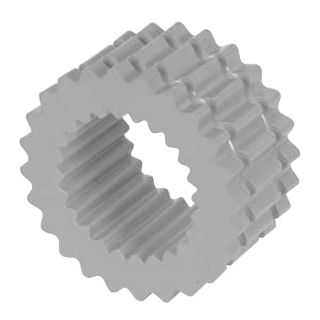

Picture of 10H SLEEVE LOV
Actual Product May Vary From Image

10H SLEEVE LOV

Lovejoy® 68514435454 1-Piece Solid Elastomer Sleeve, 10H Coupling, 3.44 in L, 7.06 in OD, 3600 rpm Max, DuPont® Hytrel®
Manufacturer: Lovejoy
Manufacturer part number: 68514435454
Availability: Ships in 2-4 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$357.77

Product Details

Brand Name

Lovejoy®

Type

1-Piece Solid

Description

Lovejoy® Elastomer Sleeve, 1-Piece Solid, 10H Coupling, 3.44 in Length, 1-1/8 to 2-3/4 in ID, 7.06 in OD, 11350 in-lb Torque, 3600 rpm Maximum, For Use With: S-Flex Endurance™ Coupling, -65 to 250 deg F, DuPont® Hytrel®, Orange

Standards

AGMA Approved | ECCN EAR99 | EPTDA Approved | FPDA Motion and Control Network Member | Member of Hydraulic Institute | MPTA Standard | NFPA Member | PTDA Approved

Features

  • The one-piece split design provides solutions for applications with unique requirements where small shaft separations inhibit the installation of a one-piece solid sleeve
  • Pre-molded teeth along the diameter of the sleeve engage with teeth of the coupling flanges
  • No clamps or screws are needed to connect the flanges with the flexible sleeve which securely lock together under torque for smooth transmission of power
  • Torque is transmitted through shear loading of the sleeve
  • All three sleeve materials are highly elastic which permits the S-Flex coupling to protect connected equipment from harmful shock loading, vibration and shaft misalignment
  • Hytrel® is a polyester elastomer designed for high torque and high temperature applications and offers excellent resistance to chemical and oil conditions
  • The sleeves in Hytrel® material are designed to transmit power for high torque applications
  • Because of the design and the properties of the Hytrel® molded sleeve, the H and HS sleeves should not be used as direct replacements for EPDM or neoprene sleeves and can only be used with S, TF or SC flanges

Specifications

Country of Origin:US
Coupling Size:10H
Finish:Orange
Inside Diameter:1-1/8 to 2-3/4 in
Length:3.44 in
Material:DuPont® Hytrel®
Maximum Speed:3600 rpm
Outside Diameter:7.06 in
Suitable For Use With:S-Flex Endurance™ Coupling
Temperature Rating:-65 to 250 deg F
Torque Rating:11350 in-lb
