10LCT BSF

Product Details

Manufacturer:
Manufacturer part number:
10LCT
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
Availability:
Expected Leadtime 30 days
Estimated dates are contingent upon manufacturer stock.

Description

Brand Name

Bussmann

Type

British Standard Type 88

Description

Eaton's Bussmann British standard BS88 fuses can be used in multiple applications; industrial, utility, street lighting and domestic. Full range of rated current and voltage available as well as compatible fuse holders. They meet the BS88 part 1 and 2 and IEC 60269-1 and -2 standards.

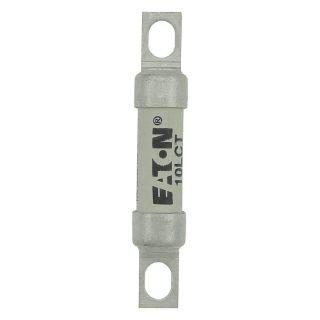

Bussmann High Speed Fuse, British Standard Type 88, Series: LCT, Non-Indicating, 10 A, 240 V, 200 kA Interrupt, Class: AR, Blade End Terminal, Stud Mounting, Cartridge Body, 47 mm L x 8.4 mm W x 8.7 mm H Body

Application

Aftermarket, Control Panels for Machines, Panel Builders, OEMs, Electrical Assemblies, Panels, Power Distribution and Control, DC Common Bus, AC/DC Drives, Power Converters/Rectifiers and Reduced Voltage Starters, Safety and Security Systems

Standards

CCC Certified | CE Certified | IEC 60269 | RoHS Compliant | UL Listed | UL Recognized

Features

  • Excellent cycling capability
  • Excellent DC performance
  • Low arc voltage and low energy let through
  • Low watts loss

Specifications

Amperage Rating:10 A
Body Size:47 mm L x 8.4 mm W x 8.7 mm H
Body Type:Cartridge
Class:AR
Country of Origin:IN
Frequency Rating:45 to 1000 Hz
Indicating/Non-Indicating:Non-Indicating
Interrupt Rating:200 kA
Material:Ceramic
Mounting Type:Stud
Series:LCT
Terminal Type:Blade
Voltage Rating:240 V
