10NBL2426YJ RBC

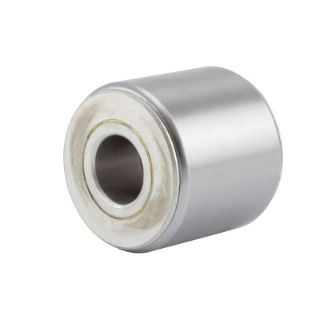

RBC® 10NBL2426YJ NBL Airframe Bearing, Needle Roller Bearing, 5/8 in Dia Bore, 1-5/8 in OD, 1-1/2 in W, 19900 lb Load
Manufacturer part number: 10NBL2426YJ
Availability: Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$748.42

Product Details

Brand Name

RBC®

Description

RBC® Airframe Bearing, Series: NBL, Needle Roller Bearing, 5/8 in Bore Dia, 2 Rows, 1-5/8 in Outside Dia, 1-1/2 in W, 19900 lb, 52100 Steel Bearing, 0 to 250 deg F, Cadmium

Application

For use in industrial applications that necessitate the most stringent tolerances

Standards

ABMA | ASPR | CAS | DFAR | FAR Standards | NASC | SAE AS24466 | US Military Specification AS39901

Features

  • Designed for use as track rollers to withstand heavy rolling loads
  • To realize full radial capacity, mount bearing on high strength bolt
  • Crowned OD to accommodate some misalignment
  • This bearing is not intended for use in any aerospace application
  • Lubrication groove (recessed) in bore and hole in inner race
  • OD of outer race chrome plated and other exposed surfaces, as mounted, cadmium plated for use as a track roller
  • 19900 lb dynamic/19900 lb static

Includes

Two Rows Needle Rollers and (2) Retaining Washers

Specifications

Bearing Material:52100 Steel
Bearing Type:Needle Roller
Bore Diameter:5/8 in
Country of Origin:US
Finish:Cadmium
Load Capacity:19900 lb
Number of Rows:2
Outside Diameter:1-5/8 in
Series:NBL
Temperature Rating:0 to 250 deg F
Width:1-1/2 in
