Actual Product May Vary From Image

10RC-14F TB

Name: 10RC-14F TB
Brand: Thomas & Betts
SKU: 10RC-14F TB
Price: 2.14 USD
Availability: OutOfStock

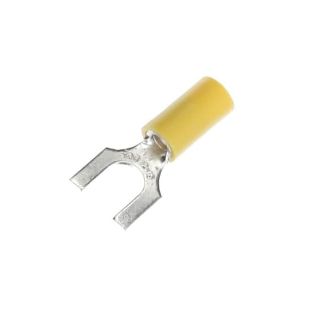

INS VINYL FORK TERM, 12-10, 1/4, YE

Manufacturer: Thomas & Betts

Manufacturer part number: 10RC-14F

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$2.14

Qty:

Product Details

Brand Name

Sta-Kon

Type

Fork Terminal

Description

Insulated Vinyl Fork Terminal For Wire Range 12-10 Stud Size 1/4, Yellow

Features

These fork terminals have extra-long PVC insulation sleeve for protection and stress relief at wire´s flex point. Brazed seam barrel is serrated for high pull-out value. Insulation is color-coded.

Specifications

Color:	Yellow
Country of Origin:	US
Finish:	Electro -Tin Plated
Flammability Rating:	UL 94 V-0
Insulation Type:	Insulated Vinyl
Material:	Copper
Maximum Insulation:	.210 IN
Stock Thickness:	.04
Stud Size:	1/4
Temperature Rating:	105?C
Voltage Rating:	600V
Wire Size:	12-10

Resources

Spec Sheet
