10RC-2577 TB

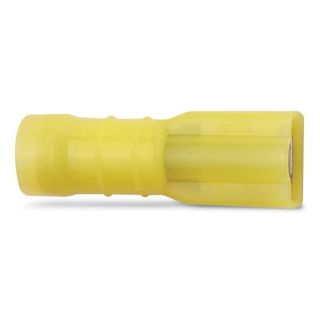

FULLY INS NYL FEM-250 FLAG DISC, 12
Manufacturer: Thomas & Betts
Manufacturer part number: 10RC-2577
Availability: Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$2.49

Product Details

Brand Name

Sta-Kon

Type

Disconnects

Description

Fully Insulated Nylon Female - 250 Series Disconnects For Wire Range 12-10 Length 1.04, Tab Size .250 x .032, Yellow

Features

Unique construction of the female disconnect offers long-term dependability. Brazed seam serrated barrel provides maximum tensile strength.

Specifications

Color:Yellow
Country of Origin:US
Disconnect Type:Female - 250 Series
Finish:Electro -Tin Plated
Flammability Rating:UL 94 V-2
Insulation:Fully Insulated Nylon
Material:Brass
Maximum Insulation:.225 IN
Stock Thickness:.04
Tab Size:.250 x .032
Temperature Rating:105?C
Voltage Rating:600V
Wire Size:12-10
