Actual Product May Vary From Image

10S 1 5/8 MSG

Name: 10S 1 5/8 MSG
Brand: Martin Sprocket & Gear
SKU: 10S 1 5/8 MSG
Price: 112.70 USD
Availability: OutOfStock

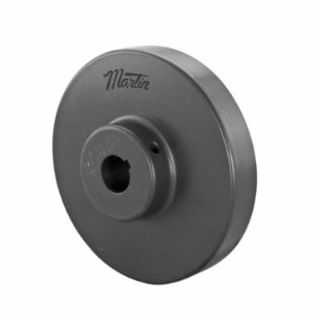

Martin Quadra-Flex® 10S 1 5/8 Bored-to-Size Type S Coupling Flange, 010 Coupling, 1-5/8 in Bore Dia, 2.719 in Length Through Bore, 4-3/8 in Hub Dia, Cast Iron

Manufacturer: Martin Sprocket & Gear

Manufacturer part number: 10S 1 5/8

Availability: Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$112.70

Qty:

Product Details

Brand Name

Martin

Type

Bored-to-Size Type S

Description

Martin Quadra-Flex® is a proven design which offers long life, torsional flexibility, ease of installation and withstands misalignment, shock and vibration. Available in sizes 3 to 16 in bored to size, QD bushed, spacer type and plain bore for custom requirements.

Martin Quadra-Flex® Coupling Flange, Bored-to-Size Type S, 010 Coupling, 1-5/8 in Bore Dia, 4-3/8 in Hub Dia, 13/16 in Hub Length, 3/8 x 3/16 in Keyway, 3600 rpm Maximum, 2.719 in Length Through Bore, 3/8-16 x 3/8 in Screw, Cast Iron

Specifications

Bore Diameter:	1-5/8 in
Country of Origin:	US
Coupling Size:	010
Hub Diameter:	4-3/8 in
Hub Length:	13/16 in
Keyway Size:	3/8 x 3/16 in
Length Through Bore:	2.719 in
Material:	Cast Iron
Maximum Speed:	3600 rpm
Screw Size:	3/8-16 x 3/8 in
