Actual Product May Vary From Image

10T5/250 JAS

Name: 10T5/250 JAS
SKU: 10T5/250 JAS
Price: 9.28 USD
Availability: OutOfStock

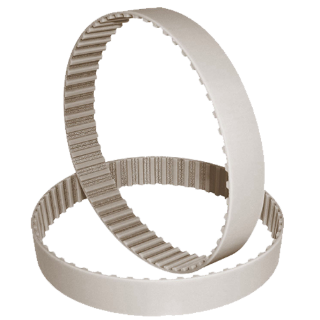

METRIC TIMING BELT URETHANE/STEEL

Manufacturer part number: 10T5/250

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$9.28

Qty:

Product Details

Brand Name

Megadyne

Type

Timing Belt

Description

Banded Construction - Fabric/Neoprene top band enhances stability and prevents belts from turning over or coming off the drive. Minimizes vibration. Static Dissipating - Safe operation in potentially dangerous atmosphere. Oil & Heat Resistant - Durability in tough environments

Application

General Industry

Standards

ISO 17396

Specifications

Belt Category:	Belts
Belt Cord:	Zinked Steel
Belt Pitch:	5 mm
Belt Pitch Length (mm):	250
Belt Section:	T5
Belt Style:	Megapower;Timing Belt
Belt Thickness:	2.2 mm
Belt Type:	Timing Belt
Belt Width:	10 mm
Belting Length:	250 mm
Construction Type:	Thermoset Polyurethane
Country of Origin:	IT
Harmonized Tariff Code:	3926.90.6090
Material:	Thermoset Polyurethane
Max Belt Width:	10 mm
Max Number of Belt Teeth:	50
Max Operating Temp (c):	80
Min Number of Belt Teeth:	50
Min Operating Temp (c):	-25
Number of Teeth:	50
Overall Thickness:	2.2 mm
Standard Compound:	Thermoset Polyurethane
