10TSDS10 MSG

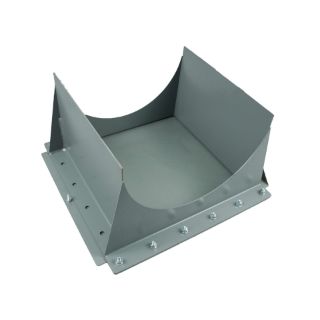

Martin 10TSDS10 Plain Fixed Spout Flanged Discharge Stub With Slide, For Use With Screw Conveyor, 12 Bolts, 10 in Dia Screw, 10 ga THK, 20 in Open Width, 0.3125 in H Slide, 1 in L x 3/8 in W Bolt, 13-1/2 in W Outside Flange, Steel
Manufacturer: Martin Sprocket & Gear
Manufacturer part number: 10TSDS10
Availability: Ships in 2-4 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
Price on Request

Product Details

Brand Name

Martin

Type

Plain Fixed Spout

Description

Standard discharge spouts with slide and slide guides are fabricated in proportion to the size and thickness of the corresponding trough. They can be furnished loose for attachment in the field or welded to the trough. The bottom flanges of the spout are drilled per CEMA standards.
Martin Flanged Discharge Stub, Plain Fixed Spout, For Use With: Screw Conveyor, 12 Bolts, 10 in Dia Screw, 10 ga THK, 20 in Open Width, 0.3125 in H Slide, 1 in L x 3/8 in W Bolt, 13-1/2 in W Outside Flange, Steel, 11 in ID

Standards

CEMA Standard

Features

Laser cut flat pieces to ensure precise fit up during assembly and consistent finish dimensions

Specifications

Dimensions:11 in ID
Material:Steel
Specifications:12 Bolts, 10 in Dia Screw, 10 ga THK, 20 in Open Width, 0.3125 in H Slide, 1 in L x 3/8 in W Bolt, 13-1/2 in W Outside Flange
Suitable For Use With:Screw Conveyor
