11 1/1 A,B ST HUB

Name: 11 1/1 A,B ST HUB
Brand: Hub City
SKU: 11 1/1 A,B ST HUB
Price: 1,233.73 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturers:

Hub City , Hub City , Hub City , Hub City

Manufacturer part number:

0220-00501

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

$1,233.73 / EA

Description

Brand Name

Hub City®

Type

Right Angle Straight Single Reduction Style A B

Description

Regal Beloit offers a wide array of enclosed spiral or straight bevel gearing solutions with universal mounting for right angle transmission.

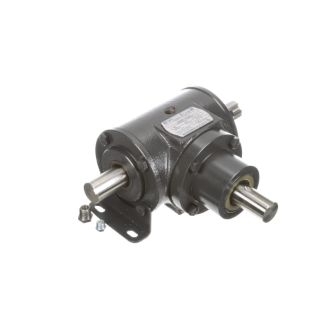

Hub City® Bevel Gear Reducer, Right Angle Straight Single Reduction Style A B, Series: 11 Series, 1:1 Gear Ratio, 12 hp, Shaft Input, Shaft Output, 1 in Dia x 1-3/4 in L Input, 1 in Dia Output, 1150 rpm Output Maximum Speed, 1150 rpm Input Maximum Speed, 660 in-lb, 6-1/8 in Centre Distance, 1/4 x 1/8 in Input Keyway, 97.5 % Efficiency, Conventional Oil Lubrication, Surface Mount, Cast Iron, 9-7/32 in W x 8-3/16 in D x 4-19/32 in H

Application

Agriculture, Aerospace, Construction, Food Processing, Medical, Material Handling, Packaging, Recreation and Transportation

Standards

AGMA Class 1

Features

Rugged cast iron housing
Universal mounting dimensions
Alloy shafting
Heavy duty industrial seals

Specifications

Centre Distance:	6-1/8 in
Country of Origin:	US
Dimensions:	9-7/32 in W x 8-3/16 in D x 4-19/32 in H
Efficiency:	97.5 %
Gear Ratio:	1:1
Horsepower:	12 hp
Input Maximum Speed:	1150 rpm
Input Size:	1 in Dia x 1-3/4 in L
Input Type:	Shaft
Keyway Size:	1/4 x 1/8 in Input
Lubrication Type:	Conventional Oil
Material:	Cast Iron
Mounting Type:	Surface
Output Maximum Speed:	1150 rpm
Output Size:	1 in Dia
Output Type:	Shaft
Series:	11 Series
Torque Rating:	660 in-lb
