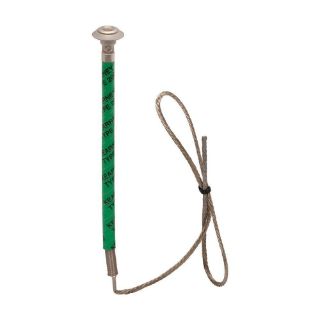

Actual Product May Vary From Image

11003 BSF

Name: 11003 BSF
Brand: Bussmann
SKU: 11003 BSF
Availability: OutOfStock

Bussmann Kearney™ Fit-All™ 11003 Power™ Type 200 Cable Fuse Link With Removable Button Head, 690 VAC/250 VDC, 3 A

Manufacturer: Bussmann

Manufacturer part number: 11003

Availability: Expected Leadtime 28 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Bussmann

Type

Type 200 Cable

Description

Bussmann Kearney™ Fit-All™ Fuse Link, Type 200 Cable, Series: Power™, 690 VAC/250 VDC, 3 A, Green, 3/4 in Dia x 23 in L

Application

Utility - Substations, Applied to a variety of applications requiring overcurrent protection of distribution systems and equipment, Utility Transmission and Distribution

Standards

ANSI/IEEE C37.42

Features

Removable buttons allow fuse links to be used in all open and enclosed cutouts, including cutouts with arc-shortening rods
Captive washer will not fall off prior to or during installation
Ampere size marked on top of screw terminal, so that it can be seen after the fuse link is installed in a fuse holder
Swaged ferrule extends around fuse link tube to ensure single end expulsion on low fault currents
High bust strength tube color coded for each fuse link to minimize the potential of installing wrong fuse link type
Fuse link type marked on length of tube to aid in identification of fuse type
Tin element

Specifications

Amperage Rating:	3 A
Color:	Green
Country of Origin:	MX
Dimensions:	3/4 in Dia x 23 in L
Series:	Power™
Voltage Rating:	690 VAC/250 VDC
