Actual Product May Vary From Image

110047.00 LEE

Name: 110047.00 LEE
Brand: Leeson Electric
SKU: 110047.00 LEE
Price: 550.98 USD
Availability: OutOfStock

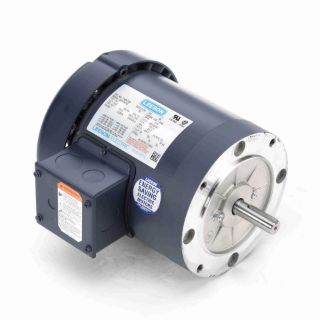

LEESON® 110047.00 Type TF Continuous Duty AC Motor, Totally Enclosed Fan Cooled Enclosure, 3/4 hp, 208 to 230/460 VAC, 60 Hz, 56 Frame, 1725 rpm Speed, Round Mount

Manufacturer: Leeson Electric

Manufacturer part number: 110047.00

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$550.98

Qty:

Product Details

Brand Name

LEESON®

Type

Type TF Continuous Duty

Description

LEESON® AC Motor, Type TF Continuous Duty, Compressor Motors, Fan & Blower Motors Application, 4-Pole, B NEMA Design Special Features, 3/4 hp, 208 to 230/460 VAC, 3/1.5 A, 60 Hz Frequency, 1725 rpm Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, 56 Frame, 5/8 in Dia Shaft, Reversible Rotation, 1.149 Service Factor, Ball Bearing, Round Mounting, 40 deg C, Insulation Class: Class B, Rolled Steel, 10.81 in L Dimensions

Application

Pumps, Compressors, Fans, Blowers, Conveyors, Machine Tools and Other Industrial Applications

Standards

CSA Certified | UL Listed

Features

4-Pole, B NEMA Design

Specifications

Amperage Rating:	3/1.5 A
Application Type:	Compressor Motors, Fan & Blower Motors
Bearing Type:	Ball
Country of Origin:	US
Dimensions:	10.81 in L
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	56
Frequency Rating:	60 Hz
Horsepower:	3/4 hp
Insulation Class:	Class B
Material:	Rolled Steel
Mounting Type:	Round
Number of Speeds:	1
Rotation:	Reversible
Service Factor:	1.149
Shaft Size:	5/8 in Dia
Speed:	1725 rpm
Temperature Rating:	40 deg C
Voltage Rating:	208 to 230/460 VAC
