Actual Product May Vary From Image

110209.00 LEE

Name: 110209.00 LEE
Brand: Leeson Electric
SKU: 110209.00 LEE
Price: 191.65 USD
Availability: OutOfStock

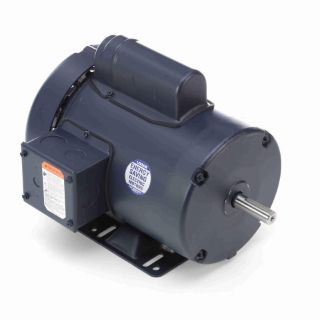

LEESON® 110209.00 Type CF Continuous Duty AC Motor, Totally Enclosed Fan Cooled Enclosure, 1 hp, 115/208 to 230 VAC, 60 Hz, 56 Frame, 1725 rpm Speed, Rigid Mount

Manufacturer: Leeson Electric

Manufacturer part number: 110209.00

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$191.65

Qty:

Product Details

Brand Name

LEESON®

Type

Type CF Continuous Duty

Description

LEESON® AC Motor, Type CF Continuous Duty, Compressor Motors, Fan & Blower Motors Application, 4-Pole, N NEMA Design Special Features, 1 hp, 115/208 to 230 VAC, 15/7.5 A, 60 Hz Frequency, 1725 rpm Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, 56 Frame, 5/8 in Dia Shaft, Selective CCW Rotation, 1.149 Service Factor, Ball Bearing, Rigid Mounting, 40 deg C, Insulation Class: Class B, Rolled Steel, 11.81 in L x 8.64 in W x 8.86 in H Dimensions

Application

Pumps, Compressors, Blowers, Fans and Other Standard Industrial Applications

Standards

CSA Certified | UL Listed

Features

4-Pole, N NEMA Design

Specifications

Amperage Rating:	15/7.5 A
Application Type:	Compressor Motors, Fan & Blower Motors
Bearing Type:	Ball
Country of Origin:	US
Dimensions:	11.81 in L x 8.64 in W x 8.86 in H
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	56
Frequency Rating:	60 Hz
Horsepower:	1 hp
Insulation Class:	Class B
Material:	Rolled Steel
Mounting Type:	Rigid
Number of Speeds:	1
Rotation:	Selective CCW
Service Factor:	1.149
Shaft Size:	5/8 in Dia
Speed:	1725 rpm
Temperature Rating:	40 deg C
Voltage Rating:	115/208 to 230 VAC
