110394.00 LEE

Name: 110394.00 LEE
Brand: Leeson Electric
SKU: 110394.00 LEE
Price: 156.99 USD
Availability: OutOfStock

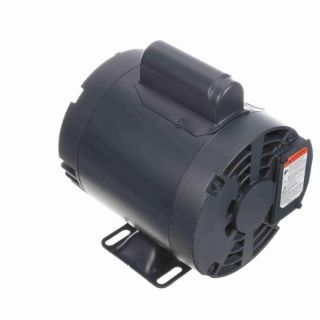

LEESON® 110394.00 4-Pole Continuous Duty AC Motor, DP Enclosure, 0.33 hp, 110/220 VAC, 50 Hz, 1 ph Phase, 56 Frame, 1425 rpm Speed, Rigid Base Mount

Manufacturer: Leeson Electric

Manufacturer part number: 110394.00

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$156.99

Qty:

Product Details

Brand Name

LEESON®

Type

4-Pole Continuous Duty

Description

LEESON® AC Motor, 4-Pole Continuous Duty, Application Type: Compressor Motors, Fan and Blower Motors, General Purpose AC Motors, Special Features: Capacitor Start Motors, 0.33 hp, 110/220 VAC, 6.4/3.2 A, 50 Hz, 1 ph, 1425 rpm, 1 Speed, DP, 56 Frame, 0.63 in Dia x 1.88 in L Shaft, Selective CCW, Service Factor: 1.35, Ball Bearing, 19.3 ft-lb, Rigid Base Mount, 40 deg C, Insulation Class: Class B, Rolled Steel, 10:1 Variable Torque Speed, 9.84 in L x 6.5 in W

Application

Pumps, Conveyors, Machine Tools, Commercial and Industrial Applications

Standards

CE/CSA Certified | UL Listed

Features

Capacitor Start Motors

Specifications

Amperage Rating:	6.4/3.2 A
Application Type:	Compressor Motors, Fan and Blower Motors, General Purpose AC Motors
Bearing Type:	Ball
Country of Origin:	US
Dimensions:	9.84 in L x 6.5 in W
Enclosure Type:	DP
Frame:	56
Frequency Rating:	50 Hz
Horsepower:	0.33 hp
Insulation Class:	Class B
Material:	Rolled Steel
Mounting Type:	Rigid Base
Number of Speeds:	1
Phase:	1 ph
Rotation:	Selective CCW
Service Factor:	1.35
Shaft Size:	0.63 in Dia x 1.88 in L
Speed:	1425 rpm
Temperature Rating:	40 deg C
Torque Rating:	19.3 ft-lb
Variable Torque Speed Range:	10:1
Voltage Rating:	110/220 VAC
