110421.00 LEE

Name: 110421.00 LEE
Brand: Leeson Electric
SKU: 110421.00 LEE
Price: 1,076.57 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Leeson Electric

Manufacturer part number:

110421.00

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

$1,076.57 / EA

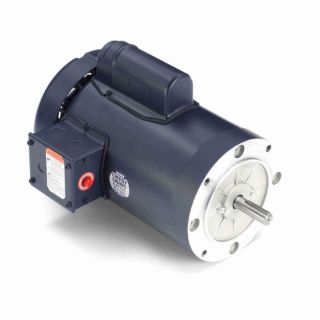

Description

Brand Name

LEESON®

Type

2-Pole Continuous Duty

Description

LEESON® AC Motor, 2-Pole Continuous Duty, Compressor Motors, Fan and Blower Motors, General Purpose AC Motors Application, Capacitor Start Motors Special Features, 2 hp, 115/208 to 230 VAC, 20/11.4 to 10 A, 60 Hz Frequency, 1 ph, 3450 rpm Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, 56C Frame, 0.63 in Dia x 2.06 in L Shaft, Selective CCW Rotation, 1 Service Factor, Ball Bearing, 3 ft-lb Torque, Round/C-Face/Footless Mounting, 40 deg C, Insulation Class: Class F, Rolled Steel, 10:1 Variable Torque Speed, 13.49 in L Dimensions

Application

Pumps, Conveyors, Commercial and Industrial Applications

Standards

CSA Certified | UL Listed

Features

Capacitor Start Motors

Specifications

Amperage Rating:	20/11.4 to 10 A
Application Type:	Compressor Motors, Fan and Blower Motors, General Purpose AC Motors
Bearing Type:	Ball
Country of Origin:	US
Dimensions:	13.49 in L
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	56C
Frequency Rating:	60 Hz
Horsepower:	2 hp
Insulation Class:	Class F
Material:	Rolled Steel
Mounting Type:	Round/C-Face/Footless
Number of Speeds:	1
Phase:	1
Rotation:	Selective CCW
Service Factor:	1
Shaft Size:	0.63 in Dia x 2.06 in L
Speed:	3450 rpm
Temperature Rating:	40 deg C
Torque Rating:	3 ft-lb
Variable Torque Speed Range:	10:1
Voltage Rating:	115/208 to 230 VAC
