Actual Product May Vary From Image

1108KLL TKN

Name: 1108KLL TKN
Brand: Timken
SKU: 1108KLL TKN
Price: 231.74 USD
Availability: OutOfStock

WIR Eccentric, Standard Duty

Manufacturer: Timken

Manufacturer part number: 1108KLL

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$231.74

Qty:

Product Details

Brand Name

Timken® Fafnir®

Description

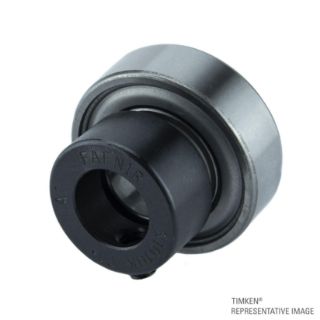

Designed to maximize performance, Timken® Fafnir® ball bearing inserts are designed for straight shafts and can be positioned without shoulders, locknuts or adapters. Timken® locking options include set screws, self-locking collars and concentric collars. Timken Fafnir ball bearing inserts feature specialized product lines to solve specific application concerns. Our problem solver series helps prevent downtime by using superior technology to keep equipment running efficiently and improve your bottom line

WIR Eccentric, Standard Duty | 38.11 mm 1.5 in Bore 79.96 mm 3.15 in OD

Features

Bearings are prelubricated at the factory and require no further lubrication
These bearings are generally suitable for higher speed and/or higher temperature applications
Because they incorporate noncontact seals, these bearings have very low rotational torque

Specifications

Bearing Material:	Steel
Bearing Type:	Wide Inner Ring Ball Bearing Insert
Bore Size (ID) - in:	1.50025
Bore Size (ID) - mm:	38.10635
Bore Type:	Round
Component (I/R; O/R assembly):	Assembly
Duty Type:	Standard duty
Dynamic Load Rating:	8130
Fillet Radius - Inch:	0.043
Fillet Radius - Millimeter:	1.0922
Inner Ring Width - Inch:	1.68515
Inner Ring Width - Millimeter:	42.80281
Insert Part Number:	N/P
Internal Clearance:	P(C3)
Load Rating UOM:	LB
Locking Type:	Eccentric
Lubrication Hole/Groove:	NO
Manufacturer Product Page Link:	https://www.timken.com/products/timken-engineered-bearings/housed-units/
Material - Rolling Elements (Ball or Roller):	STEEL
Maximum Operating RPM (Grease):	7872.7036307597
Maximum Operating RPM (Oil):	9184.82090255299
Operating Temperature Max:	120° C
Operating Temperature Min:	-50° C
Outer Diameter - in:	3.14785
Outer Diameter - mm:	79.95539
Outer Diameter Type:	Cylindrical
Outer Ring Width - Inch:	0.70635
Outer Ring Width - Millimeter:	17.94129
Overall Width - in:	2.216
Overall Width - mm:	56.2864
Precision class:	ISO Normal/ABEC1
Relubricatable:	YES
Retainer Material:	Cold Rolled Steel
Retainer Type:	Two Piece Welded
Rolling Element:	Ball
Static Load Rating:	3970
