110941 LST

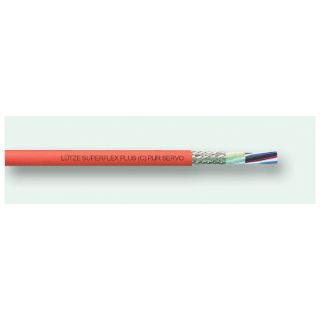

Picture of 110941 LST
Actual Product May Vary From Image

Product Details

Manufacturer:
Lutze
Manufacturer part number:
110941
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

SUPERFLEX®

Type

Shielded

Description

LUTZE SUPERFLEX® High Flexing Feedback Cable, Shielded, Series: Plus M (C) Feedback, 300 V, 10 Conductors, Stranded Bare Copper Conductor, 1 sq-mm/0.25 sq-mm Conductor, 0.354 in OD, 200 MOhm Resistance, TPE Insulation, PUR Jacket, Orange Jacket, -25 to 80 deg C Moving/-40 to 80 deg C Fixed

Application

For Bosch Rexroth, other systems for highest requirements in drive technology and continuous motion applications

Standards

CE Certified | DIN EN 60332-1-2 | Desina Compliant | DIN EN 60754-1 | FT1 Certified | HF Certified | IEC 60332-1 | IEC 60754-1 | Low Capacitance Certified | REACH Compliant | RoHS Compliant | UL 1581 Part 1080 VW-1 | UL AWM Style 20233 | UL FT1 | UL Recognized | VDE 0482 322-1-2 | VW-1 Approved

Features

  • High flexing feedback cable for continuous motion applications
  • Incremental encoder cable, termination cable for tach sensor, brake sensor and speed sensor
  • Suitable for applications with extremely rough operating conditions and oil exposure
  • For the most demanding flexing applications such as drag chains and linear flexing
  • For Bosch-Rexroth and other systems
  • Compatible with all major drag chain brands
  • High resistance to electromagnetic interference (EMI)
  • Special braided shield, optimized for continuous flexing
  • Abrasion, high wear and tear resistance
  • Hydrolysis, microbe and rot-resistant
  • UV and salt water-resistant
  • Excellent coolant and lubricant resistance
  • Resistant to most oils, greases, alcohol-free benzenes and kerosene
  • Talc and silicone-free

Specifications

Conductor Size:1 sq-mm/0.25 sq-mm
Conductor Type:Stranded Bare Copper
Country of Origin:DE
Insulation Material:TPE
Jacket Color:Orange
Jacket Material:PUR
Number of Conductors:10
Outside Diameter:0.354 in
Resistance:200 MOhm
Series:Plus M (C) Feedback
Temperature Rating:-25 to 80 deg C Moving/-40 to 80 deg C Fixed
Voltage Rating:300 V
