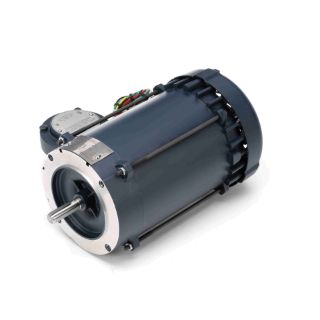

Picture of 111085.00 LEE
Actual Product May Vary From Image

111085.00 LEE

LEESON® 111085.00 4-Pole Continuous Duty Low Voltage AC Motor With Conduit Box, EPFC Enclosure, 0.5 hp, 115/208 to 230 VAC, 60 Hz, 1 ph Phase, 56C Frame, 1725 rpm Speed, Round/C-Face/Footless Mount
Manufacturer: Leeson Electric
Manufacturer part number: 111085.00
Availability: Ships in 1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$195.22

Product Details

Brand Name

LEESON®

Type

4-Pole Continuous Duty Low Voltage

Description

LEESON® AC Motor, 4-Pole Continuous Duty Low Voltage, Capacitor Start Motors, Explosion Proof AC Motors Special Features, 0.5 hp, 115/208 to 230 VAC, 8.8/4.2 to 4.4 A, 60 Hz Frequency, 1 ph ph, 1725 rpm Speed, 1 Speed, EPFC Enclosure, 56C Frame, 0.63 in Dia x 1.88 in L Shaft, Selective CCW Rotation, 1 Service Factor, Ball Bearing, 24.1 ft-lb Torque, Round/C-Face/Footless Mounting, 40 deg C, Insulation Class: Class B, Rolled Steel, 10:1 Variable Torque Speed, 13.94 in L x 8.2 in W x 7.11 in H Dimensions

Application

Commercial and Industrial Applications

Standards

CSA Certified | NEC 500 | NFPA 497M | UL Listed

Features

Capacitor Start Motors, Explosion Proof AC Motors

Specifications

Amperage Rating:8.8/4.2 to 4.4 A
Bearing Type:Ball
Country of Origin:US
Dimensions:13.94 in L x 8.2 in W x 7.11 in H
Enclosure Type:EPFC
Frame:56C
Frequency Rating:60 Hz
Horsepower:0.5 hp
Insulation Class:Class B
Material:Rolled Steel
Mounting Type:Round/C-Face/Footless
Number of Speeds:1
Phase:1 ph
Rotation:Selective CCW
Service Factor:1
Shaft Size:0.63 in Dia x 1.88 in L
Speed:1725 rpm
Temperature Rating:40 deg C
Torque Rating:24.1 ft-lb
Variable Torque Speed Range:10:1
Voltage Rating:115/208 to 230 VAC
