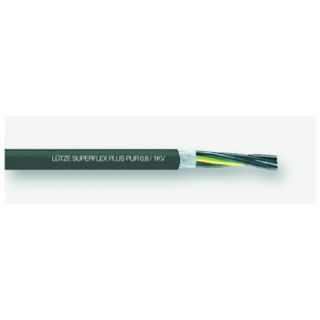

Picture of 111373 LST
Actual Product May Vary From Image

111373 LST

LUTZE SUPERFLEX® 111373 Plus M Unshielded Motor/Energy Supply Cable, 600/1000 V, (4) 10 AWG Stranded Bare Copper Conductor
Manufacturer: Lutze
Manufacturer part number: 111373
Availability: Ships in 1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$7.65

Product Details

Brand Name

SUPERFLEX®

Type

Unshielded

Description

LUTZE SUPERFLEX® Motor/Energy Supply Cable, Unshielded, Series: Plus M, 600/1000 V, 4 Conductors, Stranded Bare Copper Conductor, 10 AWG Conductor, 0.535 in OD, 500 MOhm Resistance, TPE Insulation, PUR Jacket, Black Jacket, -25 to 80 deg C Moving/-40 to 80 deg C Fixed

Application

For highest requirements and continuous motion applications

Standards

CE Certified | Desina Compliant | DIN EN 60811-2-1 | DIN EN 60754-1 | DIN EN 60332-1-2 | DIN VDE 0295 Class 6 and IEC 60228 Class 6 | Ecolab Certified | HF Certified | IEC 60754-1 | IEC 60332-1 | Low Capacitance Certified | NFPA 79 Article 12.9 | REACH Compliant | RoHS Compliant | UL 1581 Part 1080 VW-1 | UL 4d100C | UL FT1 | UL AWM Style 21223 | UL Recognized | VDE 0282 T 10 | VDE 0482 322-1-2

Features

  • High flexing motor cable for continuous motion applications
  • Continuous flexing motor and power cable for machine tools, handling equipment and processing machines
  • For the most demanding flexing applications such as drag chains and linear flexing
  • Compatible with all major drag chain brands
  • Superfine stranded per Class 6 for continuous moving applications
  • Low capacitance TPE insulation
  • Highest level of resistance against cooling fluids, greases and oils
  • Ecolab certified resistance to common cleaning agents and chemicals used in food and beverage washdown procedures
  • Abrasion, high wear and tear resistance
  • Hydrolysis, microbe and rot-resistant
  • UV-resistant
  • Non-wicking fillers
  • Talc and silicone-free

Specifications

Conductor Size:10 AWG
Conductor Type:Stranded Bare Copper
Country of Origin:IT
Insulation Material:TPE
Jacket Color:Black
Jacket Material:PUR
Number of Conductors:4
Outside Diameter:0.535 in
Resistance:500 MOhm
Series:Plus M
Temperature Rating:-25 to 80 deg C Moving/-40 to 80 deg C Fixed
Voltage Rating:600/1000 V
