Actual Product May Vary From Image

111461.1000 LST

Name: 111461.1000 LST
Brand: Lutze
SKU: 111461.1000 LST
Availability: OutOfStock

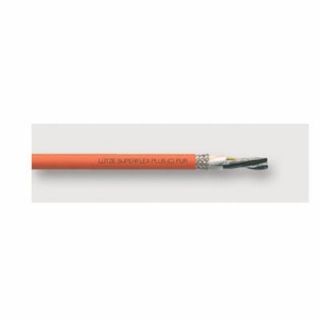

LUTZE 111461 High Flexing Motor Cable, 600/1000 VAC, (4) 14 AWG Stranded Conductor

Manufacturer: Lutze

Manufacturer part number: 111461

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

LUTZE

Type

High Flexing

Description

LUTZE Motor Cable, High Flexing, 600/1000 VAC, 4 Conductors, Stranded Conductor, 14 AWG Conductor, 0.425 in OD, 500 mOhm Resistance, TPE Insulation, Polyethylene Jacket, Orange Jacket, -40 to 80 deg C

Application

For frequency converters and servo drives in machine and plant construction, transport and conveyor technology

Standards

cURus Listed | UL 1581 | 1080 | DIN EN | 60332-1-2 | 60754-1 | IEC 60332-1 | 60754-1 Certified | VDE 0482 322-1-2 | CE Certified | RoHS Compliant

Features

Connection cable motor or motor/brake especially for frequency converters and servo drives in machine and plant construction, transport and conveyor technology
Due to optimized cable construction optimally suited for continuous flexing applications in C-tracks
Very good resistance against aggressive coolants and lubricants
Especially for industrial environments in mechanical and system engineering

Specifications

Conductor Size:	14 AWG
Conductor Type:	Stranded
Insulation Material:	TPE
Jacket Color:	Orange
Jacket Material:	Polyethylene
Number of Conductors:	4
Outside Diameter:	0.425 in
Resistance:	500 mOhm
Temperature Rating:	-40 to 80 deg C
Voltage Rating:	600/1000 VAC
