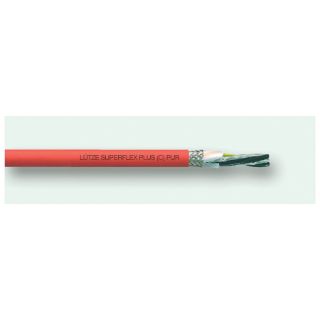

Picture of 111879 LST
Actual Product May Vary From Image

111879 LST

LUTZE SUPERFLEX® 111879 Plus M (C) Shielded High Flexing Motor Cable, 600/1000 V, (4) 18 AWG Stranded Bare Copper Conductor
Manufacturer: Lutze
Manufacturer part number: 111879
Availability: Ships in 1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
Price on Request

Product Details

Brand Name

SUPERFLEX®

Type

Shielded

Description

LUTZE SUPERFLEX® High Flexing Motor Cable, Shielded, Series: Plus M (C), 600/1000 V, 4 Conductors, Stranded Bare Copper Conductor, 18 AWG Conductor, 0.291 in OD, 500 MOhm Resistance, TPE Insulation, PUR Jacket, Orange Jacket, -25 to 80 deg C Moving/-40 to 80 deg C Fixed

Application

For Siemens and other systems for highest requirements and continuous motion applications

Standards

CE Certified | Desina Compliant | DIN EN 60754-1 | DIN EN 60332-1-2 | DIN VDE 0295 Class 6 and IEC 60228 Class 6 | Ecolab Certified | HF Certified | IEC 60754-1 | IEC 60332-1 | Low Capacitance Certified | NFPA 79 Article 12.9 | REACH Compliant | RoHS Compliant | UL AWM 21223 | UL 1581 Part 1080 VW-1 | UL AWM Style 21223 | UL FT1 | UL Recognized | VDE 0482 322-1-2

Features

  • High flexing motor cable for continuous motion applications
  • Continuous flexing motor, servo and VFD cable
  • Suitable for applications with extremely rough operating conditions and oil exposure
  • For the most demanding flexing applications such as drag chains and linear flexing
  • For Siemens 6FX8008 signal cable and similar systems
  • Compatible with all major drag chain brands
  • Superfine stranded per Class 6 for continuous moving applications
  • Highest level of resistance against cooling fluids, greases and oils
  • Ecolab certified resistance to common cleaning agents and chemicals used in food and beverage washdown procedures
  • Abrasion, high wear and tear resistance
  • Hydrolysis, microbe and rot-resistant
  • UV-resistant
  • Non-wicking fillers
  • Talc and silicone-free

Specifications

Conductor Size:18 AWG
Conductor Type:Stranded Bare Copper
Country of Origin:IT
Insulation Material:TPE
Jacket Color:Orange
Jacket Material:PUR
Number of Conductors:4
Outside Diameter:0.291 in
Resistance:500 MOhm
Series:Plus M (C)
Temperature Rating:-25 to 80 deg C Moving/-40 to 80 deg C Fixed
Voltage Rating:600/1000 V
