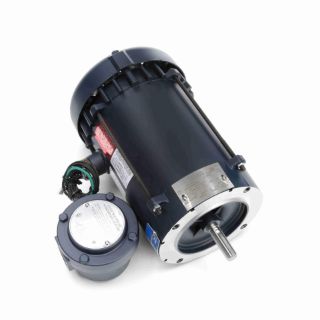

Picture of 111936.00 LEE
Actual Product May Vary From Image

111936.00 LEE

LEESON® 111936.00 2-Pole Continuous Duty Low Voltage AC Motor With Conduit Box, EPFC Enclosure, 0.75 hp, 208 to 230/460 VAC, 60 Hz, 3 ph Phase, 56C Frame, 3450 rpm Speed, Round/C-Face/Footless Mount
Manufacturer: Leeson Electric
Manufacturer part number: 111936.00
Availability: Ships in 1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$1,148.38

Product Details

Brand Name

LEESON®

Type

2-Pole Continuous Duty Low Voltage

Description

LEESON® AC Motor, 2-Pole Continuous Duty Low Voltage, Explosion Proof AC Motors Special Features, 0.75 hp, 208 to 230/460 VAC, 3 to 3.2/1.6 A, 60 Hz Frequency, 3 ph ph, 3450 rpm Speed, 1 Speed, EPFC Enclosure, 56C Frame, 0.63 in Dia x 1.88 in L Shaft, Reversible Rotation, 1 Service Factor, Ball Bearing, 1.14 ft-lb Torque, Round/C-Face/Footless Mounting, 40 deg C, Insulation Class: Class B, Rolled Steel, 10:1 Variable Torque Speed, 13.44 in L x 8.2 in W x 7.11 in H Dimensions

Application

Commercial and Industrial Applications

Standards

CSA Certified | NEC 500 | NFPA 497M | UL Listed

Features

Explosion Proof AC Motors

Specifications

Amperage Rating:3 to 3.2/1.6 A
Bearing Type:Ball
Country of Origin:US
Dimensions:13.44 in L x 8.2 in W x 7.11 in H
Enclosure Type:EPFC
Frame:56C
Frequency Rating:60 Hz
Horsepower:0.75 hp
Insulation Class:Class B
Material:Rolled Steel
Mounting Type:Round/C-Face/Footless
Number of Speeds:1
Phase:3 ph
Rotation:Reversible
Service Factor:1
Shaft Size:0.63 in Dia x 1.88 in L
Speed:3450 rpm
Temperature Rating:40 deg C
Torque Rating:1.14 ft-lb
Variable Torque Speed Range:10:1
Voltage Rating:208 to 230/460 VAC
