111938.00 LEE

Name: 111938.00 LEE
Brand: Leeson Electric
SKU: 111938.00 LEE
Price: 734.62 USD
Availability: OutOfStock

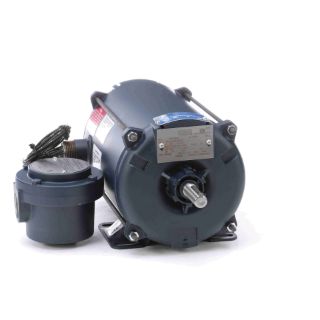

LEESON® 111938.00 6-Pole Continuous Duty Low Voltage AC Motor With Conduit Box, EPNV Enclosure, 0.5 hp, 208 to 230/460 VAC, 60 Hz, 3 ph Phase, 56 Frame, 1140 rpm Speed, Rigid Base Mount

Manufacturer: Leeson Electric

Manufacturer part number: 111938.00

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$734.62

Qty:

Product Details

Brand Name

LEESON®

Type

6-Pole Continuous Duty Low Voltage

Description

LEESON® AC Motor, 6-Pole Continuous Duty Low Voltage, Special Features: Explosion Proof AC Motors, 0.5 hp, 208 to 230/460 VAC, 2/2 A, 60 Hz, 3 ph, 1140 rpm, 1 Speed, EPNV, 56 Frame, 0.63 in Dia x 1.88 in L Shaft, Reversible, Service Factor: 1, Ball Bearing, 2.3 ft-lb, Rigid Base Mount, 40 deg C, Insulation Class: Class B, Rolled Steel, 10:1 Variable Torque Speed, 13.47 in L x 7.79 in W x 6.81 in H

Application

Commercial and Industrial Applications

Standards

CSA Certified | NEC 500 | NFPA 497M | UL Listed

Features

Explosion Proof AC Motors

Specifications

Amperage Rating:	2/2 A
Bearing Type:	Ball
Country of Origin:	US
Dimensions:	13.47 in L x 7.79 in W x 6.81 in H
Enclosure Type:	EPNV
Frame:	56
Frequency Rating:	60 Hz
Horsepower:	0.5 hp
Insulation Class:	Class B
Material:	Rolled Steel
Mounting Type:	Rigid Base
Number of Speeds:	1
Phase:	3 ph
Rotation:	Reversible
Service Factor:	1
Shaft Size:	0.63 in Dia x 1.88 in L
Speed:	1140 rpm
Temperature Rating:	40 deg C
Torque Rating:	2.3 ft-lb
Variable Torque Speed Range:	10:1
Voltage Rating:	208 to 230/460 VAC
