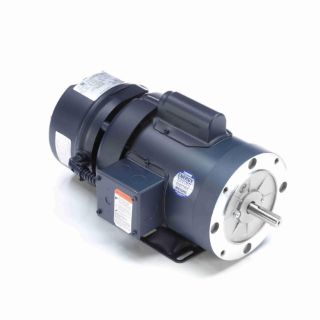

Picture of 111950.00 LEE
Actual Product May Vary From Image

111950.00 LEE

LEESON® 111950.00 Type CF Continuous Duty AC Motor, Totally Enclosed Fan Cooled Enclosure, 1 hp, 115/208 to 230 VAC, 60 Hz, 56C Frame, 1800 rpm Speed, Rigid Mount
Manufacturer: Leeson Electric
Manufacturer part number: 111950.00
Availability: Ships in 1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$1,231.96

Product Details

Brand Name

LEESON®

Type

Type CF Continuous Duty

Description

LEESON® AC Motor, Type CF Continuous Duty, Brake Motors, Hoist Motors Application, 1 hp, 115/208 to 230 VAC, 8.8/4.4 A, 60 Hz Frequency, 1800 rpm Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, 56C Frame, 5/8 in Dia x 3-1/2 in L Shaft, CCW Rotation, 1 Service Factor, Ball Bearing, 67.3 ft-oz Torque, Rigid Mounting, 40 deg C, Insulation Class: Class B, Steel, 15.06 in L x 8.64 in W x 8.85 in H Dimensions

Application

For quick response stopping and holding application which may include conveyors, hoists and packaging equipment

Standards

CSA Certified | UL Listed

Features

  • Fail-safe position stop and holding brakes
  • Load stops automatically when power is turned OFF
  • Dual voltage brake coils

Specifications

Amperage Rating:8.8/4.4 A
Application Type:Brake Motors, Hoist Motors
Bearing Type:Ball
Country of Origin:US
Dimensions:15.06 in L x 8.64 in W x 8.85 in H
Enclosure Type:Totally Enclosed Fan Cooled
Frame:56C
Frequency Rating:60 Hz
Horsepower:1 hp
Insulation Class:Class B
Material:Steel
Mounting Type:Rigid
Number of Speeds:1
Rotation:CCW
Service Factor:1
Shaft Size:5/8 in Dia x 3-1/2 in L
Speed:1800 rpm
Temperature Rating:40 deg C
Torque Rating:67.3 ft-oz
Voltage Rating:115/208 to 230 VAC
