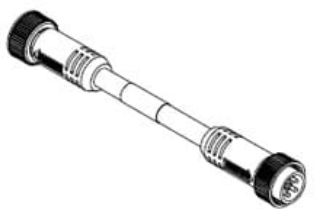

Actual Product May Vary From Image

112020A01F120 WOO

Name: 112020A01F120 WOO
Brand: Molex/Woodhead
SKU: 112020A01F120 WOO
Price: 66.89 USD
Availability: OutOfStock

Brad® Mini-Change® Woodhead® 112020A01F120 130010 A-Size Double Ended Cordset, 7/8-16 Straight Male x Straight Female Connector, 3.66 m L Cable, 2 Poles, Single Keyway

Manufacturer: Molex/Woodhead

Manufacturer part number: 112020A01F120

Availability: Expected Leadtime 7 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$66.89

Qty:

Product Details

Brand Name

Brad®

Type

A-Size Double Ended

Description

Brad® Mini-Change® connectors are the standard by which all miniature connectors are measured. First introduced in 1968, the Mini-Change® connector pioneered the market for rugged, sealed connectors in industrial applications. These connectors provided the first quick-connect alternative to hard-wiring. Mini-Change® connectors are available in a wide variety of circuits and configurations, with pole configurations available in 2 through 12, 14 and 19. With Mini-Change® connectors, industrial device wiring is easier to install and maintain. To ensure a consistent, low resistance connection, the patented Quad-Beam™ female contact is used. Connectors are sealed to provide IP67 protection. An anti-vibration feature prevents the coupler from loosening, even under extreme conditions.

Brad® Mini-Change® Woodhead® Cordset, A-Size Double Ended, Series: 130010, Straight Male x Straight Female Connector, 7/8-16 Connector, PVC Connector, 16 AWG STOOW Cable, 3.66 m Cable Length, PVC Cable, 2 Pole, Single Keyway, 600 VAC/VDC, 13 A, Black/White Wire Pin

Application

For commercial and industrial light displays, float switches on commercial sump pumps, fractional horse power motors, industrial heaters, industrial refrigeration systems, limit switches, linear position transducers and load cells

Standards

CSA File No. LR6837 | UL File No. E152210

Features

Patented Quad-Beam™ socket contact with stainless steel sleeve maintains consistent pressure on the male pin to ensure optimum conductivity
Gold over nickel plated contacts high performance, long-lasting plating that maintains low resistance through many mate/unmate cycles
Molded key indicator easier alignment and mating of connector
Integral strain relief provides 100 lb minimum cable strain relief, radiates stress in side-loaded conditions
Prevents the entry of water during temporary submersion at a limited depth
Brass contact, black epoxy coated zinc coupling nut, gold over nickel plating mating

Specifications

Amperage Rating:	13 A
Cable Length:	3.66 m
Cable Material:	PVC
Cable Type:	16 AWG STOOW
Connector Material:	PVC
Connector Size:	7/8-16
Connector Type:	Straight Male x Straight Female
Country of Origin:	MX
Keyway:	Single
Number of Poles:	2
Series:	130010
Voltage Rating:	600 VAC/VDC
Wire Pin Colors:	Black/White
