1120XH400 BRN

Name: 1120XH400 BRN
Brand: Regal Rexnord
SKU: 1120XH400 BRN
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Regal Rexnord

Manufacturer part number:

3112349

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Browning®

Type

Type XH

Description

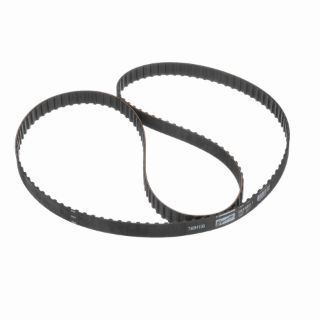

Browning® Gearbelt® Synchronous Belt, Type XH, 128 Teeth, 7/8 in Pitch, 112 in Overall Length, 4 in Width, 180 deg F, Neoprene, Fiberglass Reinforced Material, Black

Application

Aggregate and Cement, Agriculture, Minerals and Mining, Oil and Gas, Packaging Machinery and Unit Handling Industries

Features

Constant speed no slip, no creep, minimum backlash, because of the positive grip of the belt teeth with pulley grooves
High modulus strength member - needs minimum take-up
Freedom from initial belt tension - reduces bearing loads, increases life
Compact design Gearbelt® belts permit smaller pulleys, shorter centers, narrow belts
Lightweight high horsepower to weight ratio makes Gearbelt® drives ideal for any application where weight is an important factor
Less heat because Gearbelt® drives generate virtually no friction
No lubrication required
Wide load capacity range
Wide belt speed range
Gearbelt® drives are offered in five stock pitches to handle a wide range of loads
Molded teeth shear resistance teeth designed to provide smooth positive engagement with Gearbelt® pulleys
High tensile cord-specially treated cords to provide strength and additional flex life while providing resistance to elongation for the belt
Compression section bonds to belt cords for protections against dirt, grease, oil, ozone and other environmental hazards
Dual timing belts Browning® offers a full line of dual timing belts which can provide 100% load capacity from either side

Specifications

Color:	Black
Country of Origin:	US
Material:	Neoprene
Number of Teeth:	128
Overall Length:	112 in
Pitch:	7/8 in
Reinforced Material:	Fiberglass
Temperature Range:	180 deg F
Width:	4 in
