112527.00 LEE

Product Details

Manufacturer:
Manufacturer part number:
112527.00
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
1-2 weeks.
Estimated dates are contingent upon manufacturer stock.

Description

Brand Name

LEESON®

Type

Type AC Continuous Duty

Alternate Supplier #

Grainger - 48ZF40

Description

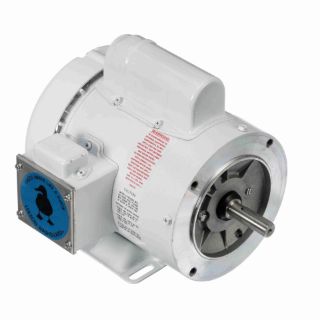

LEESON® AC Motor, Type AC Continuous Duty, Special Features: C Face With Base, 75% Efficiency, 1/2 hp, 230/460 VAC, 4.4 A, 50/60 Hz, 1800 rpm, 1 Speed, Totally Enclosed Fan Cooled, 56C Frame, 5/8 in Dia Shaft, Selective CCW, Service Factor: 1.149, Ball Bearing, 67.3 ft-oz, Rigid Mount, 40 deg C, Insulation Class: Class B, Stainless Steel, 11.19 in L

Standards

CSA File No. LR2025 | UL File No. E49747 | USDA Approved

Features

C Face With Base, 75% Efficiency

Specifications

Amperage Rating:4.4 A
Bearing Type:Ball
Country of Origin:US
Dimensions:11.19 in L
Enclosure Type:Totally Enclosed Fan Cooled
Frame:56C
Frequency Rating:50/60 Hz
Horsepower:1/2 hp
Insulation Class:Class B
Material:Stainless Steel
Mounting Type:Rigid
Number of Speeds:1
Rotation:Selective CCW
Service Factor:1.149
Shaft Size:5/8 in Dia
Speed:1800 rpm
Temperature Rating:40 deg C
Torque Rating:67.3 ft-oz
Voltage Rating:230/460 VAC
