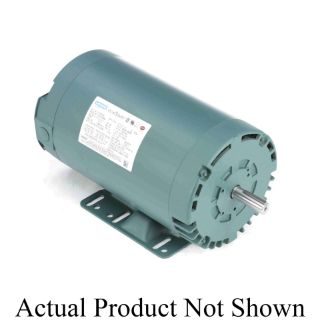

Picture of 113025.00 LEE
Actual Product May Vary From Image

113025.00 LEE

LEESON® 113025.00 4-Pole Continuous Duty AC Motor, DP Enclosure, 2 hp, 230/460 VAC, 60 Hz, 3 ph Phase, 56H Frame, 1725 rpm Speed, Rigid Base Mount
Manufacturer: Leeson Electric
Manufacturer part number: 113025.00
Availability: Ships in 1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
Price on Request

Product Details

Brand Name

LEESON®

Type

4-Pole Continuous Duty

Description

LEESON® AC Motor, 4-Pole Continuous Duty, Application Type: Compressor Motors, Fan and Blower Motors, General Purpose AC Motors, 2 hp, 230/460 VAC, 6.2/3.1 A, 60 Hz, 3 ph, 1725 rpm, 1 Speed, DP, 56H Frame, 0.63 in Dia x 1.88 in L Shaft, Reversible, Service Factor: 1.15, Ball Bearing, 6 ft-lb, Rigid Base Mount, 40 deg C, Insulation Class: Class B, Rolled Steel, 10:1 Variable Torque Speed, 11.34 in L x 6.5 in W x 6.76 in H

Application

Pumps, Commercial and Industrial Applications

Standards

CSA Certified | UL Listed

Features

  • Standard, epact and premium efficient ratings
  • Inverter rated
  • Shielded ball bearings for direct coupled applications
  • Squirrel cage induction run

Specifications

Amperage Rating:6.2/3.1 A
Application Type:Compressor Motors, Fan and Blower Motors, General Purpose AC Motors
Bearing Type:Ball
Country of Origin:US
Dimensions:11.34 in L x 6.5 in W x 6.76 in H
Enclosure Type:DP
Frame:56H
Frequency Rating:60 Hz
Horsepower:2 hp
Insulation Class:Class B
Material:Rolled Steel
Mounting Type:Rigid Base
Number of Speeds:1
Phase:3 ph
Rotation:Reversible
Service Factor:1.15
Shaft Size:0.63 in Dia x 1.88 in L
Speed:1725 rpm
Temperature Rating:40 deg C
Torque Rating:6 ft-lb
Variable Torque Speed Range:10:1
Voltage Rating:230/460 VAC
