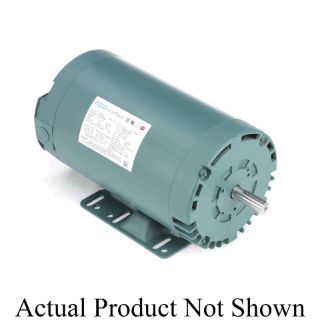

Actual Product May Vary From Image

113292.00 LEE

Name: 113292.00 LEE
Brand: Leeson Electric
SKU: 113292.00 LEE
Availability: OutOfStock

LEESON® 113292.00 2-Pole Continuous Duty AC Motor, DP Enclosure, 2 hp, 208 to 230/460 VAC, 60 Hz, 3 ph Phase, 56 Frame, 3450 rpm Speed, Rigid Base Mount

Manufacturer: Leeson Electric

Manufacturer part number: 113292.00

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

LEESON®

Type

2-Pole Continuous Duty

Description

LEESON® AC Motor, 2-Pole Continuous Duty, Application Type: Compressor Motors, Fan and Blower Motors, General Purpose AC Motors, 2 hp, 208 to 230/460 VAC, 5.8 to 5.6/2.8 A, 60 Hz, 3 ph, 3450 rpm, 1 Speed, DP, 56 Frame, 0.63 in Dia x 1.88 in L Shaft, Reversible, Service Factor: 1.15, Ball Bearing, 3 ft-lb, Rigid Base Mount, 40 deg C, Insulation Class: Class B, Rolled Steel, 10:1 Variable Torque Speed, 11.34 in L x 6.5 in W x 6.74 in H

Application

Pumps, Commercial and Industrial Applications

Standards

CSA Certified | UL Listed

Features

Standard, epact and premium efficient ratings
Inverter rated
Shielded ball bearings for direct coupled applications
Squirrel cage induction run

Specifications

Amperage Rating:	5.8 to 5.6/2.8 A
Application Type:	Compressor Motors, Fan and Blower Motors, General Purpose AC Motors
Bearing Type:	Ball
Country of Origin:	US
Dimensions:	11.34 in L x 6.5 in W x 6.74 in H
Enclosure Type:	DP
Frame:	56
Frequency Rating:	60 Hz
Horsepower:	2 hp
Insulation Class:	Class B
Material:	Rolled Steel
Mounting Type:	Rigid Base
Number of Speeds:	1
Phase:	3 ph
Rotation:	Reversible
Service Factor:	1.15
Shaft Size:	0.63 in Dia x 1.88 in L
Speed:	3450 rpm
Temperature Rating:	40 deg C
Torque Rating:	3 ft-lb
Variable Torque Speed Range:	10:1
Voltage Rating:	208 to 230/460 VAC
