113431 LST

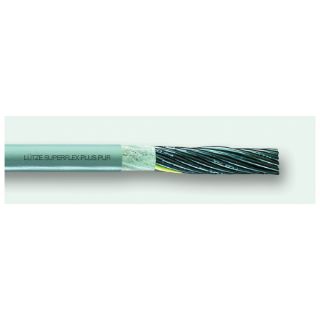

Picture of 113431 LST
Actual Product May Vary From Image

Product Details

Manufacturer:
Lutze
Manufacturer part number:
113431
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

SUPERFLEX®

Type

Unshielded

Description

LUTZE SUPERFLEX® Flexible Control Cable, Unshielded, Series: Plus N, 300 V, 2 Conductors, Stranded Bare Copper Conductor, 21 AWG Conductor, 0.189 in OD, 1000 MOhm Resistance, Special TPE Insulation, PUR Jacket, Gray Jacket, -25 to 80 deg C Moving/-40 to 80 deg C Fixed

Standards

CE Certified | DIN EN 60332-1-2 | DIN EN 60754-1 | DIN VDE 0295 Class 6 | FT1 Certified | HF Certified | IEC 60332-1 | IEC 60754-1 | IEC 60228 Class 6 | Low Capacitance Certified | NFPA 79, Article 12.9 | Oil Res II | REACH Compliant | RoHS Compliant | UL Recognized | UL VW-1 | UL AWM Style 20233

Features

  • High flexing control cable for continuous motion applications
  • Multi-conductor cable for robots, handling equipment, machine tools, drag chains and applications with extremely rough operating conditions
  • For the most demanding flexing applications such as drag chains and linear flexing
  • Compatible with all major drag chain brands
  • Superfine stranded per Class 6 for continuous moving applications
  • Extremely small cable ODs due to special TPE High Glide insulation compliant with UL
  • Reduced friction
  • PUR jacket
  • Highest level of resistance against cooling fluids, greases and oils
  • Abrasion, high wear and tear resistance
  • Hydrolysis, microbe and rot-resistant
  • UV-resistant
  • Non-wicking fillers
  • Talc and silicone-free

Specifications

Conductor Size:21 AWG
Conductor Type:Stranded Bare Copper
Country of Origin:DE
Insulation Material:Special TPE
Jacket Color:Gray
Jacket Material:PUR
Number of Conductors:2
Outside Diameter:0.189 in
Resistance:1000 MOhm
Series:Plus N
Temperature Rating:-25 to 80 deg C Moving/-40 to 80 deg C Fixed
Voltage Rating:300 V
