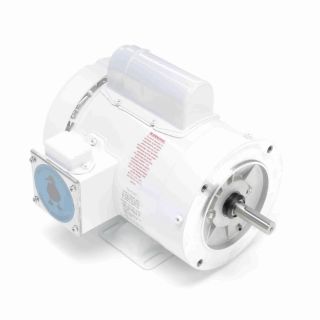

Picture of 113583.00 LEE
Actual Product May Vary From Image

113583.00 LEE

LEESON® Washguard® 113583.00 2-Pole Continuous Duty AC Motor, Totally Enclosed Fan Cooled Enclosure, 1 hp, 115/208 to 230 VAC, 60 Hz, 1 ph Phase, 56C Frame, 3450 rpm Speed, C-Face/Rigid Base Mount
Manufacturer: Leeson Electric
Manufacturer part number: 113583.00
Availability: Ships in 1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$688.97

Product Details

Brand Name

LEESON®

Type

2-Pole Continuous Duty

Description

LEESON® Washguard® AC Motor, 2-Pole Continuous Duty, General Purpose AC Motors Application, Capacitor Start Motors Special Features, 1 hp, 115/208 to 230 VAC, 12/6.2 to 6 A, 60 Hz Frequency, 1 ph ph, 3450 rpm Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, 56C Frame, 0.63 in Dia x 1.88 in L Shaft, Selective CCW Rotation, 1.15 Service Factor, Ball Bearing, 24 ft-lb Torque, C-Face/Rigid Base Mounting, 40 deg C, Insulation Class: Class F, Rolled Steel, 10:1 Variable Torque Speed, 11.87 in L x 8.75 in H Dimensions

Application

Commercial and Industrial Applications

Standards

BISSC/CSA Certified | UL Listed

Features

Capacitor Start Motors

Specifications

Amperage Rating:12/6.2 to 6 A
Application Type:General Purpose AC Motors
Bearing Type:Ball
Country of Origin:US
Dimensions:11.87 in L x 8.75 in H
Enclosure Type:Totally Enclosed Fan Cooled
Frame:56C
Frequency Rating:60 Hz
Horsepower:1 hp
Insulation Class:Class F
Material:Rolled Steel
Mounting Type:C-Face/Rigid Base
Number of Speeds:1
Phase:1 ph
Rotation:Selective CCW
Service Factor:1.15
Shaft Size:0.63 in Dia x 1.88 in L
Speed:3450 rpm
Temperature Rating:40 deg C
Torque Rating:24 ft-lb
Variable Torque Speed Range:10:1
Voltage Rating:115/208 to 230 VAC
