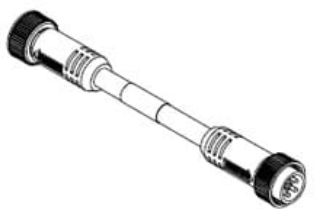

Actual Product May Vary From Image

114020A01F200 WOO

Name: 114020A01F200 WOO
Brand: Molex/Woodhead
SKU: 114020A01F200 WOO
Price: 116.56 USD
Availability: OutOfStock

Brad® Mini-Change® Woodhead® 114020A01F200 130010 A-Size Double Ended Cordset, 7/8-16 Straight Male x Straight Female Connector, 6.1 m L Cable, 4 Poles, Single Keyway

Manufacturer: Molex/Woodhead

Manufacturer part number: 114020A01F200

Availability: Expected Leadtime 12 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$116.56

Qty:

Product Details

Brand Name

Brad®

Type

A-Size Double Ended

Description

Delivering optimum conductivity, Brad® Mini-Change® connectors from Molex® offer the broadest selection of miniature connectors in the industrial market. Brad® Mini-Change® connectors are the standard by which all miniature connectors are measured. First introduced in 1968, the Mini-Change® connector pioneered the market for rugged, sealed connectors in industrial applications. These connectors provided the first quick-connect alternative to hard-wiring.

Brad® Mini-Change® Woodhead® Cordset, A-Size Double Ended, Series: 130010, Straight Male x Straight Female Connector, 7/8-16 Connector, PVC Connector, 16 AWG STOOW Cable, 6.1 m Cable Length, PVC Cable, 4 Pole, Single Keyway, 600 VAC/VDC, 10 A, Black/Green/Red/White/Yellow Wire Pin

Application

For commercial and industrial light displays, float switches on commercial sump pumps, fractional horse power motors, industrial heaters, industrial refrigeration systems, limit switches, linear position transducers and load cells

Standards

CSA File No. LR6837 | UL File No. E152210

Features

Patented Quad-Beam™ socket contact with stainless steel sleeve maintains consistent pressure on the male pin to ensure optimum conductivity
High performance, long-lasting plating that maintains low resistance through many mate/unmate cycles
Easier alignment and mating of connector
Provides 100 lb minimum cable strain relief radiates stress in side-loaded conditions
Prevents the entry of water during temporary submersion at a limited depth
Brass contact, black epoxy coated zinc coupling nut, gold over nickel plating mating

Specifications

Amperage Rating:	10 A
Cable Length:	6.1 m
Cable Material:	PVC
Cable Type:	16 AWG STOOW
Connector Material:	PVC
Connector Size:	7/8-16
Connector Type:	Straight Male x Straight Female
Country of Origin:	MX
Keyway:	Single
Number of Poles:	4
Series:	130010
Voltage Rating:	600 VAC/VDC
Wire Pin Colors:	Black/Green/Red/White/Yellow
