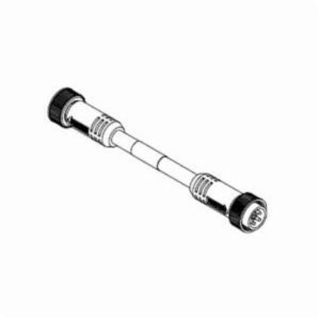

Actual Product May Vary From Image

114030K12M010 WOO

Name: 114030K12M010 WOO
Brand: Molex/Woodhead
SKU: 114030K12M010 WOO
Price: 83.29 USD
Availability: OutOfStock

Brad® Mini-Change® Woodhead® 114030K12M010 130010 A-Size Double Ended Cordset, Straight Female x Straight Male Connector, 1 m L Cable, 4 Poles, Single Keyway

Manufacturer: Molex/Woodhead

Manufacturer part number: 114030K12M010

Availability: Expected Leadtime 7 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$83.29

Qty:

Product Details

Brand Name

Brad®

Type

A-Size Double End

Description

Brad® Mini-Change® Woodhead® Cordset, A-Size Double Ended, Series: 130010, Straight Female x Straight Male Connector, TPE Connector, 16 AWG TC-ER/TC-EC Cable, 1 m Cable Length, TPE Cable, 4 Pole, Single Keyway, 600 V, 10 A

Application

For commercial and industrial light displays, float switches on commercial sump pumps, fractional horse power motors, industrial heaters, industrial refrigeration systems, limit switches, linear position transducers and load cells

Standards

UL E152210 | RoHS Compliant

Features

Patented, Quad Beam socket contact with stainless steel sleeve, maintains consistent pressure on the male pin to ensure optimum conductivity
High performance, long-lasting plating that maintains low resistance through many mate /unmate cycles
Easier alignment and mating of connector
Provides 100 pounds minimum cable strain relief radiates stress in side-loaded conditions
Prevents the entry of water during temporary submersion at a limited depth
16 AWG yellow cable
Copper alloy contact, black epoxy coated zinc coupling nut, gold plating mating
0.42 in cable diameter
-20 to 105 deg C operating temperature

Specifications

Amperage Rating:	10 A
Cable Length:	1 m
Cable Material:	TPE
Cable Type:	16 AWG TC-ER/TC-EC
Connector Material:	TPE
Connector Size:	7/8-16
Connector Type:	Straight Female x Straight Male
Country of Origin:	MX
Keyway:	Single
NEMA Rating:	NEMA IP67
Number of Poles:	4
Series:	130010
Voltage Rating:	600 VAC
Wire Pin Colors:	Black/Blue/Brown/White
