114226.00 LEE

Name: 114226.00 LEE
Brand: Leeson Electric
SKU: 114226.00 LEE
Availability: OutOfStock

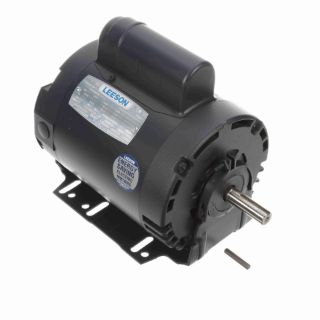

Actual Product May Vary From Image

Product Details

Manufacturer:

Leeson Electric

Manufacturer part number:

114226.00

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

LEESON®

Type

2-Pole Continuous Duty

Alternate Supplier #

Grainger - 4GUK4

Description

LEESON® AC Motor, 2-Pole Continuous Duty, Application Type: Compressor Motors, Fan and Blower Motors, General Purpose AC Motors, Special Features: Capacitor Start Motors, 0.75 hp, 110/220 VAC, 11.2/5.6 A, 50 Hz, 1 ph, 2850 rpm, 1 Speed, DP, 56H Frame, 0.63 in Dia x 1.88 in L Shaft, Selective CCW, Service Factor: 1.25, Ball Bearing, 21.6 ft-lb, Resilient Base Mount, 40 deg C, Insulation Class: Class B, Rolled Steel, 10:1 Variable Torque Speed, 11.29 in L x 6.4 in W x 8.68 in H

Application

Pumps, Conveyors, Machine Tools, Commercial and Industrial Applications

Standards

CE/CSA Certified | UL Listed

Features

Capacitor Start Motors

Specifications

Amperage Rating:	11.2/5.6 A
Application Type:	Compressor Motors, Fan and Blower Motors, General Purpose AC Motors
Bearing Type:	Ball
Country of Origin:	US
Dimensions:	11.29 in L x 6.4 in W x 8.68 in H
Enclosure Type:	DP
Frame:	56H
Frequency Rating:	50 Hz
Horsepower:	0.75 hp
Insulation Class:	Class B
Material:	Rolled Steel
Mounting Type:	Resilient Base
Number of Speeds:	1
Phase:	1 ph
Rotation:	Selective CCW
Service Factor:	1.25
Shaft Size:	0.63 in Dia x 1.88 in L
Speed:	2850 rpm
Temperature Rating:	40 deg C
Torque Rating:	21.6 ft-lb
Variable Torque Speed Range:	10:1
Voltage Rating:	110/220 VAC
