Actual Product May Vary From Image

1144-5000 TPO

Name: 1144-5000 TPO
SKU: 1144-5000 TPO
Availability: OutOfStock

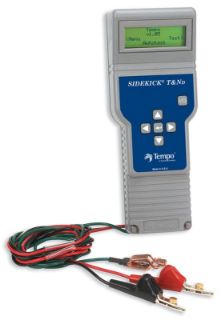

Tempo SidekickÃ‚® 1144-5000 Sidekick T&ND Tester, +/-300 VAC, 300 VDC, 0 to 100 mA, LCD Display

Manufacturer part number: 1144-5000

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Tempo

Description

Tempo SidekickÃ‚® Tester, Series: Sidekick T&ND, +/-300 VAC, 300 VDC, 0 to 100 mA, 1 mOhm Resistance, LCD Display, AA Alkaline Battery, 10-3/4 in Length, 4-1/4 in Width, 2-1/2 in Depth

Application

Loop Current Tests, Longitudinal Balance (Stress Test), Transmission, Noise and Open Locator Applications

Standards

ARRA Compliant | RoHS Compliant

Features

Easy-to-read digital LCD display
Internal dialer for making transmission test connections
Auto-test performs 22 individual tests at the touch of a button
Determines the stressed noise susceptibility of dry and working pairs
Measures ACV/DCV leakage, resistance and loop current
Performs circuit loss, circuit noise (metallic noise) and power influence tests
Built-in open meter
Locates up to 4 load coils
Single set up for tip-ring, tip-ground and ring-ground tests
Field replaceable test leads
On-screen display of "low battery" when batteries are near failure
100 Mohm max leakage
Up to 4 load coil
0 to 60 kft open
40 to 100 dBmC power influence
0 to 82 dam stress balance

Specifications

Amperage Rating:	0 to 100 mA
Battery Type:	AA Alkaline
Country of Origin:	US
Depth:	2-1/2 in
Display Type:	LCD
Length:	10-3/4 in
Resistance:	1 mOhm
Series:	Sidekick T&ND
Voltage Rating:	+/-300 VAC, 300 VDC
Width:	4-1/4 in
