114582.00 LEE

Name: 114582.00 LEE
Brand: Leeson Electric
SKU: 114582.00 LEE
Availability: OutOfStock

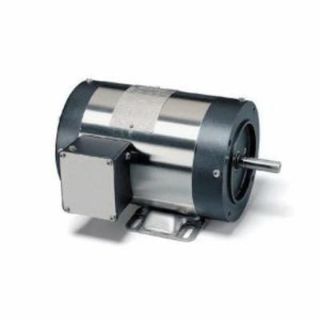

LEESON® 114582.00 Type AC Continuous Duty AC Motor, TENV Enclosure, 2 hp, 208 to 230/460 VAC, 50/60 Hz, 56C Frame, 1800 rpm Speed, Round Mount

Manufacturer: Leeson Electric

Manufacturer part number: 114582.00

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

LEESON®

Type

Type AC Continuous Duty

Description

LEESON® AC Motor, Type AC Continuous Duty, C Face Less Base, 84% Full Load Efficiency Special Features, 2 hp, 208 to 230/460 VAC, 5.6 A, 50/60 Hz Frequency, 1800 rpm Speed, 1 Speed, TENV Enclosure, 56C Frame, 5/8 in Dia Shaft, Reversible Rotation, 1.149 Service Factor, Ball Bearing, Round Mounting, 40 deg C, Insulation Class: Class F, Stainless Steel, 13.69 in L Dimensions

Application

For food processing areas requiring frequent sanitation procedures using high pressure cleaning with concentrated caustic solutions, areas of high humidity and in chemical environments

Standards

BISSC Certified | CSA File No. LR2025, UL File No. E49747

Features

C Face Less Base, 84% Full Load Efficiency

Specifications

Amperage Rating:	5.6 A
Bearing Type:	Ball
Dimensions:	13.69 in L
Enclosure Type:	TENV
Frame:	56C
Frequency Rating:	50/60 Hz
Horsepower:	2 hp
Insulation Class:	Class F
Material:	Stainless Steel
Mounting Type:	Round
Number of Speeds:	1
Rotation:	Reversible
Service Factor:	1.149
Shaft Size:	5/8 in Dia
Speed:	1800 rpm
Temperature Rating:	40 deg C
Voltage Rating:	208 to 230/460 VAC
