116349.00 LEE

Product Details

Manufacturer:
Manufacturer part number:
116349.00
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
1-2 weeks.
Estimated dates are contingent upon manufacturer stock.

Description

Brand Name

LEESON®

Type

4-Pole Continuous Duty

Description

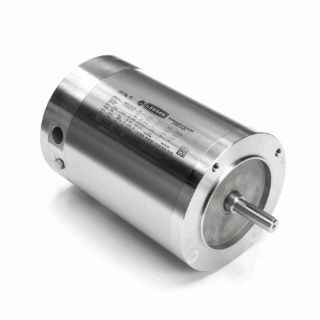

LEESON® Washguard® AC Motor, 4-Pole Continuous Duty, Capacitor Start Motors, Washdown Duty Motors Special Features, 0.33 hp, 115/208 to 230 VAC, 5.4/3 to 2.7 A, 60 Hz Frequency, 1 ph, 1725 rpm Speed, 1 Speed, Totally Enclosed Nonvented (TENV) Enclosure, 56C Frame, 0.63 in Dia x 1.88 in L Shaft, Selective CCW Rotation, 1.15 Service Factor, Ball Bearing, 16 ft-lb Torque, Round/C-Face/Footless Mounting, 40 deg C, Insulation Class: Class F, Stainless Steel, 10:1 Variable Torque Speed, 11.7 in L Dimensions

Application

Bakery, Commercial and Industrial Applications

Standards

BISSC 769 | CSA LR33543 | UL E57948

Features

Capacitor Start Motors, Washdown Duty Motors

Specifications

Amperage Rating:5.4/3 to 2.7 A
Bearing Type:Ball
Country of Origin:US
Dimensions:11.7 in L
Enclosure Type:Totally Enclosed Nonvented (TENV)
Frame:56C
Frequency Rating:60 Hz
Horsepower:0.33 hp
Insulation Class:Class F
Material:Stainless Steel
Mounting Type:Round/C-Face/Footless
Number of Speeds:1
Phase:1
Rotation:Selective CCW
Service Factor:1.15
Shaft Size:0.63 in Dia x 1.88 in L
Speed:1725 rpm
Temperature Rating:40 deg C
Torque Rating:16 ft-lb
Variable Torque Speed Range:10:1
Voltage Rating:115/208 to 230 VAC
