116747.00 LEE

Name: 116747.00 LEE
Brand: Leeson Electric
SKU: 116747.00 LEE
Availability: OutOfStock

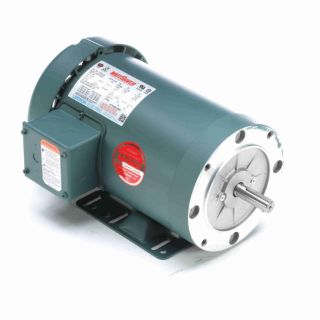

Actual Product May Vary From Image

Product Details

Manufacturer:

Leeson Electric

Manufacturer part number:

116747.00

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

LEESON®

Type

4-Pole Continuous Duty

Alternate Supplier #

Grainger - 773N42

Description

LEESON® Ultimate e® AC Motor, 4-Pole Continuous Duty, General Purpose AC Motors Application, 2 hp, 230/460 VAC, 5.8/2.9 A, 60 Hz Frequency, 3 ph, 1745 rpm Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, 56C Frame, 0.63 in Dia x 1.88 in L Shaft, Reversible Rotation, 1.25 Service Factor, Ball Bearing, 6 ft-lb Torque, C-Face/Rigid Base Mounting, 40 deg C, Insulation Class: Class F, Rolled Steel, 10:1 Variable Torque Speed, 13.49 in L x 7.3 in H Dimensions

Application

Commercial and Industrial Applications

Standards

CE/CSA Certified | UL Listed

Features

Premium efficient ratings and inverter rated
Class B insulation systems 42, 48 and 56 frames
Shielded ball bearings for direct coupled applications
Dynamically balanced rotors
Torques exceed NEMA performance standards
WattSaver® e premium efficient motors
Ultimate® premium efficient motors

Specifications

Amperage Rating:	5.8/2.9 A
Application Type:	General Purpose AC Motors
Bearing Type:	Ball
Country of Origin:	US
Dimensions:	13.49 in L x 7.3 in H
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	56C
Frequency Rating:	60 Hz
Horsepower:	2 hp
Insulation Class:	Class F
Material:	Rolled Steel
Mounting Type:	C-Face/Rigid Base
Number of Speeds:	1
Phase:	3
Rotation:	Reversible
Service Factor:	1.25
Shaft Size:	0.63 in Dia x 1.88 in L
Speed:	1745 rpm
Temperature Rating:	40 deg C
Torque Rating:	6 ft-lb
Variable Torque Speed Range:	10:1
Voltage Rating:	230/460 VAC
