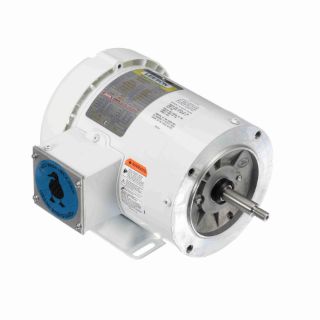

Actual Product May Vary From Image

116779.00 LEE

Name: 116779.00 LEE
Brand: Leeson Electric
SKU: 116779.00 LEE
Price: 700.03 USD
Availability: OutOfStock

LEESON® Washguard® 116779.00 2-Pole Continuous Duty AC Motor, Totally Enclosed Fan Cooled Enclosure, 0.75 hp, 208 to 230/460 VAC, 60 Hz, 3 ph Phase, 56J Frame, 3450 rpm Speed, C-Face/Rigid Base Mount

Manufacturer: Leeson Electric

Manufacturer part number: 116779.00

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$700.03

Qty:

Product Details

Brand Name

LEESON®

Type

2-Pole Continuous Duty

Description

LEESON® Washguard® AC Motor, 2-Pole Continuous Duty, Jet Pump (JM/JP) Motors Application, Washdown Duty Motors Special Features, 0.75 hp, 208 to 230/460 VAC, 2.5 to 2.4/1.2 A, 60 Hz Frequency, 3 ph ph, 3450 rpm Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, 56J Frame, 0.63 in Dia x 2.44 in L Shaft, Reversible Rotation, 1.15 Service Factor, Ball Bearing, 18 ft-lb Torque, C-Face/Rigid Base Mounting, 40 deg C, Insulation Class: Class F, Rolled Steel, 10:1 Variable Torque Speed, 11.37 in L x 7.3 in H Dimensions

Application

Food processing Plants, Chemical Processing, Pharmaceutical Plants, Beverage, Brewing Industries, Commercial and Industrial Applications

Standards

BISSC/CE/CSA Certified | UL Listed | USDA Approved

Features

Washdown Duty Motors

Specifications

Amperage Rating:	2.5 to 2.4/1.2 A
Application Type:	Jet Pump (JM/JP) Motors
Bearing Type:	Ball
Country of Origin:	US
Dimensions:	11.37 in L x 7.3 in H
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	56J
Frequency Rating:	60 Hz
Horsepower:	0.75 hp
Insulation Class:	Class F
Material:	Rolled Steel
Mounting Type:	C-Face/Rigid Base
Number of Speeds:	1
Phase:	3 ph
Rotation:	Reversible
Service Factor:	1.15
Shaft Size:	0.63 in Dia x 2.44 in L
Speed:	3450 rpm
Temperature Rating:	40 deg C
Torque Rating:	18 ft-lb
Variable Torque Speed Range:	10:1
Voltage Rating:	208 to 230/460 VAC
