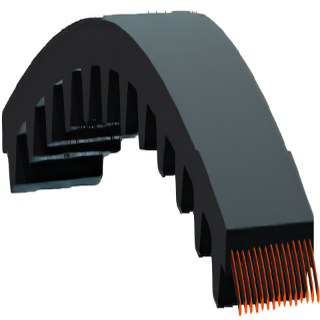

Actual Product May Vary From Image

116XL050 JAS

Name: 116XL050 JAS
SKU: 116XL050 JAS
Price: 8.10 USD
Availability: OutOfStock

TIMING BELT

Manufacturer part number: 116XL050

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$8.10

Qty:

Product Details

Brand Name

Megadyne

Type

Timing Belt

Description

Fiberglass Tensile Cord - High dimensional stability. Chloroprene Belt Body - Oil, heat and ozone resistance; high tooth shear resistance. Nylon Tooth Cover - Durability and wear resistance, increased power capacity

Application

General Industry

Standards

ARPM IP-24

Specifications

Belt Category:	Belts
Belt Cord:	Fiberglass
Belt Pitch:	0.2 in
Belt Pitch Length (mm):	294.64
Belt Section:	XL
Belt Style:	Timing Belt
Belt Thickness:	2.3 mm
Belt Type:	Timing Belt
Belt Width:	0.5 in
Belth Cover:	Polyamide Fabric
Belting Length:	11.6 in
Construction Type:	Chloroprene
Country of Origin:	CN
Harmonized Tariff Code:	4010.39.1000
Material:	Chloroprene
Max Belt Width:	0.5 in
Max Number of Belt Teeth:	58
Max Operating Temp (c):	80
Min Number of Belt Teeth:	58
Min Operating Temp (c):	-25
Number of Teeth:	58
Overall Thickness:	2.3 mm
Standard Compound:	Chloroprene
Tooth Profile:	Trapezoidal
