117041 LST

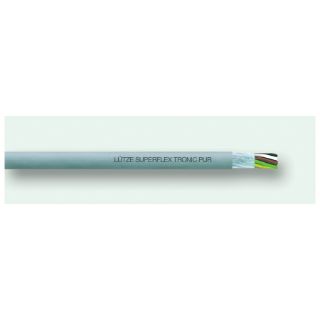

LUTZE SUPERFLEX® 117041 TRONIC Unshielded Electronic Cable, 300 V, (4) 24 AWG Stranded Bare Copper Conductor
Manufacturer: Lutze
Manufacturer part number: 117041
Availability: Ships in 1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$0.98

Product Details

Brand Name

SUPERFLEX®

Type

Unshielded

Description

LUTZE SUPERFLEX® Electronic Cable, Unshielded, Series: TRONIC, 300 V, 4 Conductors, Stranded Bare Copper Conductor, 24 AWG Conductor, 0.177 in OD, 1000 MOhm Resistance, TPE Insulation, PUR Jacket, Gray Jacket, -25 to 80 deg C Moving/-40 to 80 deg C Fixed

Application

For continuous motion applications, robots, handling equipment, machine tools, drag chains and applications with extremely rough operating conditions, the most demanding flexing applications such as drag chains and linear flexing, In dry and damp rooms, machine and device construction, transport, conveyor technology and heating, climate technology

Standards

Article 12.9 | AWM 20549 | CE Certified | cRUus Listed | DIN 47100/EN 60332-2-2/60811-404/60754-1 | HF Certified | IEC 60332-2-2/60754-1 | NFPA 79 | REACH Compliant | RoHS Compliant | UL 1581 | UL 2556-300h | UL FT2 | UL Horizontal Flame Test

Features

  • Compatible with all major drag chain brands
  • Superfine stranded per Class 6 for continuous moving applications
  • PUR jacket and TPE conductor insulation for use in extremely harsh operating conditions
  • Highest level of resistance against cooling fluids, greases and oils
  • Abrasion, high wear and tear resistance
  • Hydrolysis, microbe and rot-resistant
  • UV-resistant
  • Talc and silicone-free
  • Low capacitance, very good electrical properties
  • Flame retardant, self-extinguishing
  • Halogen-free, no corrosive gases
  • Very good flexing strength
  • Low adhesion, abrasion-resistant, nick-resistant, tear-resistant
  • Good ruggedness and salt water resistance
  • Excellent coolant and lubricant resistance
  • Resistant to most oils, greases, alcohol-free benzenes and kerosene

Specifications

Conductor Size:24 AWG
Conductor Type:Stranded Bare Copper
Country of Origin:DE
Insulation Material:TPE
Jacket Color:Gray
Jacket Material:PUR
Number of Conductors:4
Outside Diameter:0.177 in
Resistance:1000 MOhm
Series:TRONIC
Temperature Rating:-25 to 80 deg C Moving/-40 to 80 deg C Fixed
Voltage Rating:300 V
