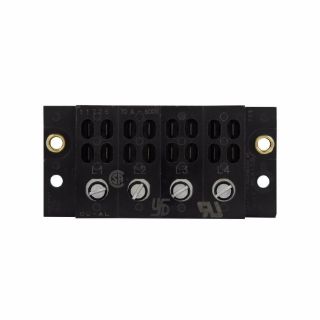

Actual Product May Vary From Image

11725-4 BSF

Name: 11725-4 BSF
Brand: Bussmann
SKU: 11725-4 BSF
Availability: OutOfStock

Bussmann Magnum® 11725-4 Quick-Connect Power Distribution Block, 600 V, 70 A, 4 Poles, 4 to 2 AWG, 8 to 2 AWG Wire

Manufacturer: Bussmann

Manufacturer part number: 11725-4

Availability: Expected Leadtime 14 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Bussmann

Type

Quick-Connect

Description

Bussmann provides the broadest offering of UL listed Cable Limiters, Welder Limiters, Circuit Limiters and accessories. With products rated for AC or DC applications to suit your specific application requirements.

Bussmann Magnum® Power Distribution Block, Quick-Connect, Series: 11725, 600 V, 70 A, 4 Pole, 1 Primary Connections/Pole, 4 Secondary Connection/Pole, 4 to 2 AWG, 8 to 2 AWG Wire, 10 kA Short Circuit Current Rating, 3.87 in L x 1.12 in W x 1.84 in H

Application

Electrical Assemblies, Panels and OEMs Applications

Standards

Features

Screw connection line side, (4) 1/4 in quick connect load side
4 to 2 AWG copper, 8 to 2 AWG aluminum wire

Specifications

Amperage Rating:	70 A
Color:	Black
Country of Origin:	MX
Dimensions:	3.87 in L x 1.12 in W x 1.84 in H
Number of Poles:	4
Primary Connections/Pole:	(1) Screw
Secondary Connection/Pole:	(4) 1/4 in Quick Connect
Series:	11725
Short Circuit Current Rating:	10 kA
Voltage Rating:	600 VAC/VDC
Wire Size:	14 to 2 AWG, 8 AWG
