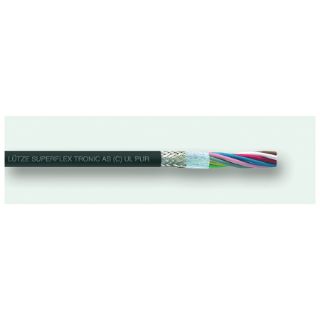

Picture of 117255 LST
Actual Product May Vary From Image

117255 LST

LUTZE SUPERFLEX® 117255 TRONIC Shielded Sensor Cable, 300 V, (5) 22 AWG Stranded Bare Copper Conductor
Manufacturer: Lutze
Manufacturer part number: 117255
Availability: Ships in 1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
Price on Request

Product Details

Brand Name

SUPERFLEX®

Type

Shielded

Description

LUTZE SUPERFLEX® Sensor Cable, Shielded, Series: TRONIC, 300 V, 5 Conductors, Stranded Bare Copper Conductor, 22 AWG Conductor, 0.217 in OD, 100 MOhm Resistance, TPE Insulation, PUR Jacket, Black Jacket, -20 to 80 deg C Moving/-40 to 80 deg C Fixed

Application

For continuous motion applications, actuator sensor applications, continuous flexing use in drag chains or free movement in automation technology, transport, conveyor technology and machine tool manufacturing

Standards

Article 12.9 | AWM 20549 | CE Certified | DIN VDE 0295/EN 60332-2-2/60811-404/60754-1/60947-5-2 | HF Certified | IEC 60754-1/60228 Class 6 | NFPA 79 | Oil Res II | REACH Compliant | RoHS Compliant | UL 1581 | UL FT1 | UL Horizontal Flame Test | VW-1 Approved

Features

  • Full PUR jacket and TPE conductor insulation optimally suited for extremely harsh operating conditions, aggressive coolants and lubricants
  • Compatible with all major drag chain brands
  • Very good alternating bending strength
  • Good pressure and flexing stability
  • Low adhesion, abrasion, high wear and tear resistance
  • Hydrolysis, microbe and rot-resistant
  • Weathering, ozone and UV-resistant
  • Good ruggedness and salt water resistance
  • Excellent coolant and lubricant resistance
  • Largely-resistant to oils, greases, alcohol-free benzenes and kerosene
  • Talc and silicone-free

Specifications

Conductor Size:22 AWG
Conductor Type:Stranded Bare Copper
Country of Origin:DE
Insulation Material:TPE
Jacket Color:Black
Jacket Material:PUR
Number of Conductors:5
Outside Diameter:0.217 in
Resistance:100 MOhm
Series:TRONIC
Temperature Rating:-20 to 80 deg C Moving/-40 to 80 deg C Fixed
Voltage Rating:300 V
