117270.00 LEE

Name: 117270.00 LEE
Brand: Leeson Electric
SKU: 117270.00 LEE
Price: 1,375.87 USD
Availability: OutOfStock

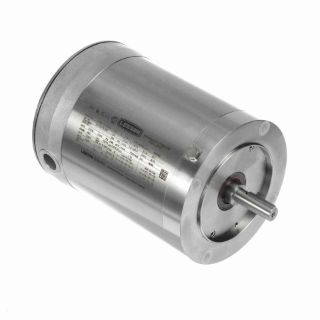

LEESON® 117270.00 Type AC Continuous Duty AC Motor, TENV Enclosure, 1/2 hp, 230/460 VAC, 50/60 Hz, 56C Frame, 1800 rpm Speed, Round Mount

Manufacturer: Leeson Electric

Manufacturer part number: 117270.00

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$1,375.87

Qty:

Product Details

Brand Name

LEESON®

Type

Type AC Continuous Duty

Description

LEESON® AC Motor, Type AC Continuous Duty, Special Features: C Face Less Base, 78.5% Full Load Efficiency, 1/2 hp, 230/460 VAC, 1.6 A, 50/60 Hz, 1800 rpm, 1 Speed, TENV, 56C Frame, 5/8 in Dia Shaft, Reversible, Service Factor: 1.149, Ball Bearing, 96 ft-oz, Round Mount, 40 deg C, Insulation Class: Class B, Stainless Steel, 11.22 in L

Standards

CE Marked | CSA File No. LR2025 | UL File No. E49747

Features

C Face Less Base, 78.5% Full Load Efficiency

Specifications

Amperage Rating:	1.6 A
Bearing Type:	Ball
Country of Origin:	US
Dimensions:	11.22 in L
Enclosure Type:	TENV
Frame:	56C
Frequency Rating:	50/60 Hz
Horsepower:	1/2 hp
Insulation Class:	Class B
Material:	Stainless Steel
Mounting Type:	Round
Number of Speeds:	1
Rotation:	Reversible
Service Factor:	1.149
Shaft Size:	5/8 in Dia
Speed:	1800 rpm
Temperature Rating:	40 deg C
Torque Rating:	96 ft-oz
Voltage Rating:	230/460 VAC
