117935.00 LEE

Name: 117935.00 LEE
Brand: Leeson Electric
SKU: 117935.00 LEE
Availability: OutOfStock

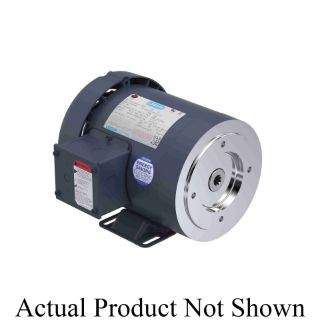

Actual Product May Vary From Image

Product Details

Manufacturer:

Leeson Electric

Manufacturer part number:

117935.00

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

LEESON®

Type

4-Pole Continuous Duty

Description

LEESON® AC Motor, 4-Pole Continuous Duty, Hydraulic Pump Motors Application, 0.75 hp, 208 to 230/460 VAC, 2.7 to 2.8/1.4 A, 60 Hz Frequency, 3 ph ph, 1725 rpm Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, 56YZ Frame, 1.19 in Dia x 1 in L Shaft, Reversible Rotation, 1.15 Service Factor, Ball Bearing, 36 ft-lb Torque, Rigid Base Mounting, 40 deg C, Insulation Class: Class F, Rolled Steel, 10:1 Variable Torque Speed, 9 in L x 7.32 in H Dimensions

Application

Commercial and Industrial Applications

Standards

CSA Certified | UL Listed

Features

IRIS® inverter duty insulation system

Specifications

Amperage Rating:	2.7 to 2.8/1.4 A
Application Type:	Hydraulic Pump Motors
Bearing Type:	Ball
Country of Origin:	US
Dimensions:	9 in L x 7.32 in H
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	56YZ
Frequency Rating:	60 Hz
Horsepower:	0.75 hp
Insulation Class:	Class F
Material:	Rolled Steel
Mounting Type:	Rigid Base
Number of Speeds:	1
Phase:	3 ph
Rotation:	Reversible
Service Factor:	1.15
Shaft Size:	1.19 in Dia x 1 in L
Speed:	1725 rpm
Temperature Rating:	40 deg C
Torque Rating:	36 ft-lb
Variable Torque Speed Range:	10:1
Voltage Rating:	208 to 230/460 VAC
