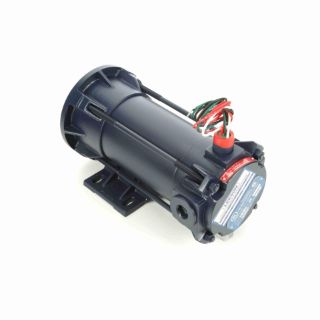

Actual Product May Vary From Image

118016.00 LEE

Name: 118016.00 LEE
Brand: Leeson Electric
SKU: 118016.00 LEE
Price: 2,972.89 USD
Availability: OutOfStock

LEESON® 118016.00 4-Pole Continuous Duty DC Motor, 18 in-lb Torque, 0.37 kW Power Rating, 90 VDC, 4.7 A, S56C Frame, 1750 rpm Speed

Manufacturer: Leeson Electric

Manufacturer part number: 118016.00

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$2,972.89

Qty:

Product Details

Brand Name

LEESON®

Type

4-Pole Continuous Duty

Description

LEESON® DC Motor, 4-Pole Continuous Duty, Explosion Proof DC Motors Special Features, 0.37 kW Power, 90 VDC, 4.7 A, 1750 rpm Speed, 1 Speed, Totally Enclosed Nonvented (TENV) Enclosure, S56C Frame, 0.63 in Dia x 1.88 in L Shaft, Reversible Rotation, 1 Service Factor, Ball Bearing, 18 in-lb Torque, C-Face/Rigid Base Mounting, 40 deg C, Insulation Class: Class H, Rolled Steel, 14.41 in L x 6.5 in W Dimensions

Application

Commercial and Industrial Applications

Standards

CSA Certified | UL Listed | NEC 500 | NFPA 497M

Features

Explosion Proof DC Motors

Specifications

Amperage Rating:	4.7 A
Bearing Type:	Ball
Country of Origin:	US
Dimensions:	14.41 in L x 6.5 in W
Enclosure Type:	Totally Enclosed Nonvented (TENV)
Frame:	S56C
Insulation Class:	Class H
Material:	Rolled Steel
Mounting Type:	C-Face/Rigid Base
Number of Speeds:	1
Power Rating:	0.37 kW
Rotation:	Reversible
Service Factor:	1
Shaft Size:	0.63 in Dia x 1.88 in L
Speed:	1750 rpm
Temperature Rating:	40 deg C
Torque Rating:	18 in-lb
Voltage Rating:	90 VDC
