Actual Product May Vary From Image

118056.00 LEE

Name: 118056.00 LEE
Brand: Leeson Electric
SKU: 118056.00 LEE
Price: 4,385.26 USD
Availability: OutOfStock

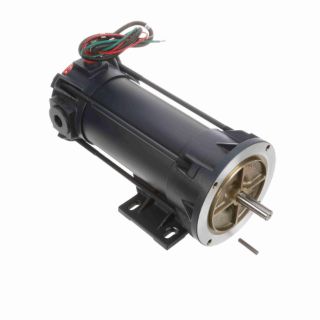

LEESON® 118056.00 4-Pole Continuous Duty Low Voltage DC Motor, 0.56 kW Power Rating, 24 VDC, 28.2 A, S56C Frame, 1750 rpm Speed

Manufacturer: Leeson Electric

Manufacturer part number: 118056.00

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$4,385.26

Qty:

Product Details

Brand Name

LEESON®

Type

4-Pole Continuous Duty Low Voltage

Description

LEESON® DC Motor, 4-Pole Continuous Duty Low Voltage, Explosion Proof DC Motors Special Features, 0.56 kW Power, 24 VDC, 28.2 A, 1750 rpm Speed, 1 Speed, Totally Enclosed Nonvented (TENV) Enclosure, S56C Frame, 0.63 in Dia x 2.06 in L Shaft, Reversible Rotation, 1 Service Factor, Ball Bearing, C-Face/Rigid Base Mounting, 40 deg C, Insulation Class: Class H, 12.37 in L x 6.5 in W Dimensions

Application

Commercial and Industrial Applications

Standards

CSA Certified | UL Listed | NEC 500 | NFPA 497M

Features

Explosion Proof DC Motors

Specifications

Amperage Rating:	28.2 A
Bearing Type:	Ball
Country of Origin:	US
Dimensions:	12.37 in L x 6.5 in W
Enclosure Type:	Totally Enclosed Nonvented (TENV)
Frame:	S56C
Insulation Class:	Class H
Mounting Type:	C-Face/Rigid Base
Number of Speeds:	1
Power Rating:	0.56 kW
Rotation:	Reversible
Service Factor:	1
Shaft Size:	0.63 in Dia x 2.06 in L
Speed:	1750 rpm
Temperature Rating:	40 deg C
Voltage Rating:	24 VDC
