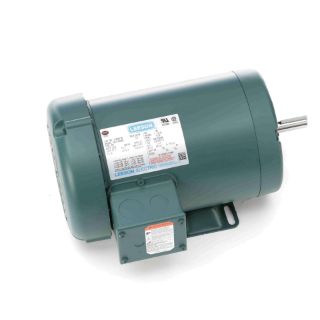

Actual Product May Vary From Image

119395.00 LEE

Name: 119395.00 LEE
Brand: Leeson Electric
SKU: 119395.00 LEE
Price: 797.36 USD
Availability: OutOfStock

LEESON® Ultimate e® 119395.00 6-Pole Continuous Duty AC Motor, Totally Enclosed Fan Cooled Enclosure, 1 hp, 208 to 230/460 VAC, 60 Hz, 3 ph Phase, 56 Frame, 1170 rpm Speed, C-Face/Rigid Base Mount

Manufacturer: Leeson Electric

Manufacturer part number: 119395.00

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$797.36

Qty:

Product Details

Brand Name

LEESON®

Type

6-Pole Continuous Duty

Description

LEESON® Ultimate e® AC Motor, 6-Pole Continuous Duty, Compressor Motors, Fan and Blower Motors, General Purpose AC Motors Application, 1 hp, 208 to 230/460 VAC, 3.8 to 3.8/1.9 A, 60 Hz Frequency, 3 ph ph, 1170 rpm Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, 56 Frame, 0.63 in Dia x 1.88 in L Shaft, Reversible Rotation, 1.15 Service Factor, Ball Bearing, 4.5 ft-lb Torque, C-Face/Rigid Base Mounting, 40 deg C, Insulation Class: Class F, Rolled Steel, 10:1 Variable Torque Speed, 12.98 in L x 7.32 in H Dimensions

Application

Pumps, Conveyors, Machine Tools, Commercial and Industrial Applications

Standards

CSA Certified | UL Listed

Features

Premium efficient ratings
Inverter rated
Shielded ball bearings for direct coupled applications
Dynamically balanced rotors
WattSaver® e premium efficient motors
Ultimate® premium efficient motors
Squirrel cage induction run

Specifications

Amperage Rating:	3.8 to 3.8/1.9 A
Application Type:	Compressor Motors, Fan and Blower Motors, General Purpose AC Motors
Bearing Type:	Ball
Country of Origin:	US
Dimensions:	12.98 in L x 7.32 in H
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	56
Frequency Rating:	60 Hz
Horsepower:	1 hp
Insulation Class:	Class F
Material:	Rolled Steel
Mounting Type:	C-Face/Rigid Base
Number of Speeds:	1
Phase:	3 ph
Rotation:	Reversible
Service Factor:	1.15
Shaft Size:	0.63 in Dia x 1.88 in L
Speed:	1170 rpm
Temperature Rating:	40 deg C
Torque Rating:	4.5 ft-lb
Variable Torque Speed Range:	10:1
Voltage Rating:	208 to 230/460 VAC
