119491.00 LEE

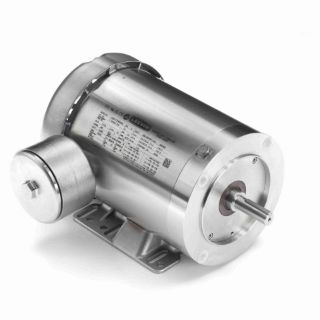

LEESON® Washguard® 119491.00 4-Pole Continuous Duty AC Motor, Totally Enclosed Fan Cooled Enclosure, 1 hp, 208 to 230/460 VAC, 60 Hz, 3 ph Phase, 56C Frame, 1760 rpm Speed, C-Face/Rigid Base Mount
Manufacturer: Leeson Electric
Manufacturer part number: 119491.00
Availability: Ships in 1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$1,796.79

Product Details

Brand Name

LEESON®

Type

4-Pole Continuous Duty

Description

LEESON® Washguard® AC Motor, 4-Pole Continuous Duty, Washdown Duty Motors Special Features, 1 hp, 208 to 230/460 VAC, 3.2 to 3.2/1.6 A, 60 Hz Frequency, 3 ph ph, 1760 rpm Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, 56C Frame, 0.63 in Dia x 1.88 in L Shaft, Reversible Rotation, 1.15 Service Factor, Ball Bearing, 3 ft-lb Torque, C-Face/Rigid Base Mounting, 40 deg C, Insulation Class: Class F, Stainless Steel, 10:1 Variable Torque Speed, 11.94 in L x 7.2 in H Dimensions

Application

Bakery, Commercial and Industrial Applications

Standards

BISSC 769 | CSA Certified | CSA LR33543 | UL E57948

Features

Washdown Duty Motors

Specifications

Amperage Rating:3.2 to 3.2/1.6 A
Bearing Type:Ball
Country of Origin:US
Dimensions:11.94 in L x 7.2 in H
Enclosure Type:Totally Enclosed Fan Cooled
Frame:56C
Frequency Rating:60 Hz
Horsepower:1 hp
Insulation Class:Class F
Material:Stainless Steel
Mounting Type:C-Face/Rigid Base
Number of Speeds:1
Phase:3 ph
Rotation:Reversible
Service Factor:1.15
Shaft Size:0.63 in Dia x 1.88 in L
Speed:1760 rpm
Temperature Rating:40 deg C
Torque Rating:3 ft-lb
Variable Torque Speed Range:10:1
Voltage Rating:208 to 230/460 VAC
