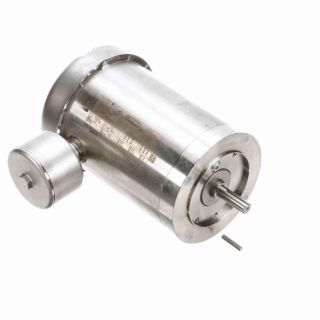

Actual Product May Vary From Image

119520.00 LEE

Name: 119520.00 LEE
Brand: Leeson Electric
SKU: 119520.00 LEE
Price: 1,903.17 USD
Availability: OutOfStock

LEESON® Washguard® Extreme Duck® 119520.00 4-Pole Continuous Duty AC Motor, Totally Enclosed Fan Cooled Enclosure, 1.5 hp, 208 to 230/460 VAC, 60 Hz, 3 ph Phase, 56C Frame, 1750 rpm Speed, Round/C-Face/Footless Mount

Manufacturer: Leeson Electric

Manufacturer part number: 119520.00

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$1,903.17

Qty:

Product Details

Brand Name

LEESON®

Type

4-Pole Continuous Duty

Description

LEESON® Washguard® Extreme Duck® AC Motor, 4-Pole Continuous Duty, 1.5 hp, 208 to 230/460 VAC, 4.6 to 4.8/2.4 A, 60 Hz Frequency, 3 ph ph, 1750 rpm Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, 56C Frame, 0.63 in Dia x 1.88 in L Shaft, Reversible Rotation, 1.15 Service Factor, Ball Bearing, 4.5 ft-lb Torque, Round/C-Face/Footless Mounting, 40 deg C, Insulation Class: Class F, Rolled Steel, 10:1 Variable Torque Speed, 12.22 in L Dimensions

Application

Commercial and Industrial Applications

Standards

CE/CSA Certified | UL Listed

Features

Q-Car™ rotor cartridge for quick access
Double sealed ball bearings with high temperature grease
Non-wicking lead wires, 2-piece shaft seal with flinger
Chemical and abrasion resistant lead markers
Conduit box rotates 360 deg on TEFC models
Enhanced encapsulation process and IP69K enclosure protection
Total winding encapsulation using an epoxy resin
Exclusive IRIS® inverter duty insulation system provides extra protection and long life and especially in inverter-driven applications
CSA energy efficiency verification program and report number EEV 78720-1
IP69K enclosure protection color coded leads and full fact nameplate is laser etched on the motor frame

Specifications

Amperage Rating:	4.6 to 4.8/2.4 A
Bearing Type:	Ball
Country of Origin:	US
Dimensions:	12.22 in L
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	56C
Frequency Rating:	60 Hz
Horsepower:	1.5 hp
Insulation Class:	Class F
Material:	Rolled Steel
Mounting Type:	Round/C-Face/Footless
Number of Speeds:	1
Phase:	3 ph
Rotation:	Reversible
Service Factor:	1.15
Shaft Size:	0.63 in Dia x 1.88 in L
Speed:	1750 rpm
Temperature Rating:	40 deg C
Torque Rating:	4.5 ft-lb
Variable Torque Speed Range:	10:1
Voltage Rating:	208 to 230/460 VAC
