Actual Product May Vary From Image

119524.00 LEE

Name: 119524.00 LEE
Brand: Leeson Electric
SKU: 119524.00 LEE
Price: 2,231.30 USD
Availability: OutOfStock

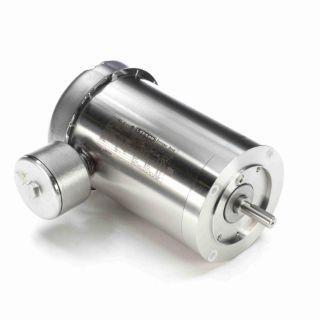

LEESON® 119524.00 4-Pole Squirrel Cage Inverter Rated Washdown Motor, IP69K Totally Enclosed Fan Cooled Enclosure, 2 hp, 208 to 230/460 V, 60/50 Hz, 3 ph Phase, 56C Frame, 1745 rpm Speed, Round Mount

Manufacturer: Leeson Electric

Manufacturer part number: 119524.00

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$2,231.30

Qty:

Product Details

Brand Name

LEESON®

Type

4-Pole Squirrel Cage Inverter Rated

Description

LEESON® Washdown Motor, 4-Pole Squirrel Cage Inverter Rated, Special Features: Washdown Duty Motors, 2 hp, 208 to 230/460 V, 6 to 5.8/2.9 A, 60/50 Hz, 3 ph, 1745 rpm, 1 Speed, IP69K Totally Enclosed Fan Cooled, 56C Frame, 0.625 in Dia x 2.06 in L Shaft, Reversible, Service Factor: 1.15, Ball Bearing, Round Mount, 40 deg C, Insulation Class: Class F, Stainless Steel, 13.19 in L

Standards

CE Certified | CSA Certified to EEV 78720-1 | UL Recognized

Features

Washdown Duty Motors

Specifications

Amperage Rating:	6 to 5.8/2.9 A
Bearing Type:	Ball
Country of Origin:	US
Dimensions:	13.19 in L
Enclosure Type:	IP69K Totally Enclosed Fan Cooled
Frame:	56C
Frequency Rating:	60/50 Hz
Horsepower:	2 hp
Insulation Class:	Class F
Material:	Stainless Steel
Mounting Type:	Round
Number of Speeds:	1
Phase:	3 ph
Rotation:	Reversible
Service Factor:	1.15
Shaft Size:	0.625 in Dia x 2.06 in L
Speed:	1745 rpm
Temperature Rating:	40 deg C
Voltage Rating:	208 to 230/460 V
